Engine displacement
50
2
Model
RCR
3
Year
2004
4
Trim
RCR 50
5
Parts Catalog
Fuel tank-filter box-seat
6
Parts Diagram
Parts Catalog
Swing arm-shock absorber
by
Chaiss components
Fuel tank-filter box-seat
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
16
17
18
19
19
20
21
22
23
24
25
26
27
28
28
29
29
29
30
30
31
32
33
34
1
Top tank frame
ODN00H00404711
Not Available
1
Top tank frame
ODN00H00404684
Not Available
2
Lever
ODN00H00604141
Not Available
3
Spring
ODN00H06303762
Not Available
4
Ring
ODN00047030400
Not Available
5
Pin
ODN00H06303752
Not Available
6
Level gauge
ODN00H04302181
Not Available
7
Fuel filler cap
ODN00G00401131
Not Available
8
Packing for cap
ODN00F00400771
Not Available
9
Fuel tank
ODN00H00406011
Not Available
10
Hose cock
ODN00G00400501
Not Available
11
Fuel cock
ODN00G00400181
Not Available
12
Spring clamp
ODN00D03700131
Not Available
13
Hose clamp
ODN00G03204272
Not Available
14
Fuel pipe
ODN00F00403321
Not Available
15
Vacuum hose piping
ODN00H06201061
Not Available
16
Spring clamp
ODN00F03710131
Not Available
17
Saddle
ODN00H00619013
Not Available
17
Saddle
ODN00H00619012
Not Available
17
Saddle
ODN00H00619011
Not Available
18
plate
ODN00H00600341
Not Available
19
SCREW
ODN00011051801
Not Available
20
screw
ODN00012061200
Not Available
21
Cable protector
ODN00008915020
Not Available
22
Cup
ODN00D01500552
Not Available
23
Saddle clamp
ODN00H06100261
Not Available
24
Tank support
ODN00H00404051
Not Available
25
Filter holder
ODN00H01800541
Not Available
26
Air filter
ODN00H03201251
Not Available
27
pipe
ODN00D03210491
Not Available
28
Nut
ODN00D01501371
Not Available
29
Plain washer d5
ODN00D01200171
Not Available
30
screw
ODN00012161600
Not Available
31
screw
ODN00073481964
Not Available
32
Plate
ODN00D01500471
Not Available
33
Joint
ODN00H03207261
Not Available
34
Name plate
ODN00H00308333
Not Available

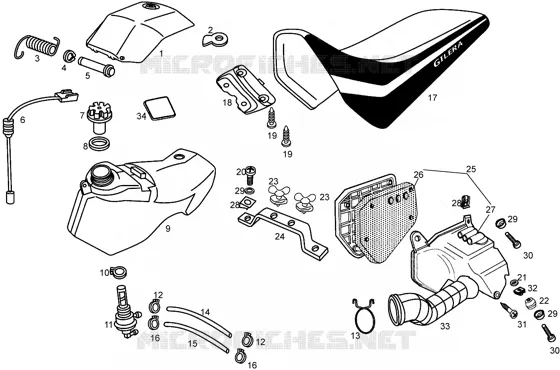

Find the detailed Fuel tank-filter box-seat GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
