1
Engine displacement
50
2
Model
RUNNER
3
Year
2002
4
Trim
Runner 50 Poggiali
5
Parts Catalog

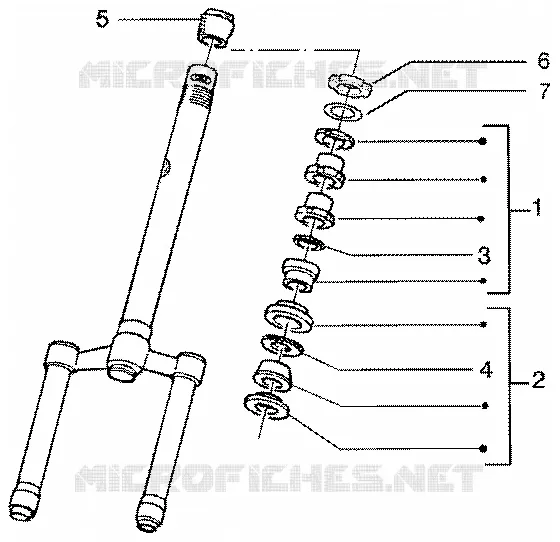

Steering bearing ball tracks
6
Parts Diagram
Parts Catalog
Crankshaft
by
Front fork
Steering bearing ball tracks
1
2
3
4
5
6
7
1
Steering bearing assy.
56002R
Not Available
2
Steering bearing assy.
56003R
Not Available
3
Missing description
000000
Not Available
3
Ball cage
077024
Not Available
4
Missing description
000000
Not Available
5
Collar
582828
£2,11 Unit Price incl. VAT
6
Steering tube ring nut
011109
Not Available
7
Steering security plate
582787
£1,91 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
