1
Engine displacement
50
2
Model
RUNNER
3
Year
2002
4
Trim
Runner 50 Poggiali
5
Parts Catalog

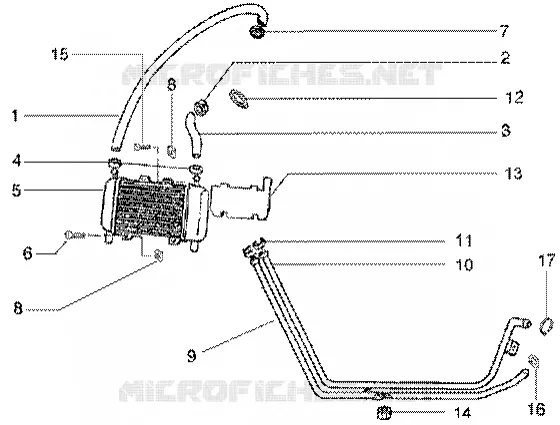

Cooling system
6
Parts Diagram
Parts Catalog
Expansion tank
by
Air cleaner
Cooling system
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
1
Coolant tank-cooler feed pipe
621564
Not Available
1
Oil delivery pipe
573059
Not Available
2
Hose clamp
CM001904
£1,51 Unit Price incl. VAT
3
Return pipe
573060
Not Available
4
Hose clamp
CM001903
£1,87 Unit Price incl. VAT
5
Water cooler
299389
Not Available
6
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
7
Hose clamp
CM001903
£1,87 Unit Price incl. VAT
8
Spring plate M6
254485
£1,64 Unit Price incl. VAT
9
Pump-radiator pipe fitting
57308R
Not Available
9
Not available
577596
Not Available
10
Radiator-head pipe fitting link
577595
Not Available
10
Radiator-head pipe fitting link
57307R
Not Available
11
Hose clamp
CM001905
£1,62 Unit Price incl. VAT
12
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
13
Protection
576177
£10,79 Unit Price incl. VAT
14
Nut M6
020106
Not Available
15
Metric screw M6x20
259830
Not Available
16
Fairlead
178610
£1,63 Unit Price incl. VAT
17
Hose clamp
CM001909
£1,88 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
