Engine displacement
200
2
Model
GRANTURISMO
3
Year
2003
4
Trim
Granturismo L
5
Parts Catalog
Handlebars
6
Parts Diagram
Parts Catalog
Handlebar covers
by
Swinging arm
Handlebars
1
2
3
4
5
6
7
8
8
9
9
10
11
11
12
12
13
14
15
16
17
18
19
20
1
Handlebar
583407
Not Available
2
screw
223605
Not Available
3
Flat washer
178790
£1,64 Unit Price incl. VAT
4
Nut M10
015330
Not Available
5
Hose
CM060950
£117,66 Unit Price incl. VAT
5
Hose
CM060933
Not Available
6
Grip, r.h.
271453
£7,04 Unit Price incl. VAT
7
Transmission
CM073301
£49,70 Unit Price incl. VAT
8
Anti vib.weight trailing
582034
Not Available
9
screw M6x55
271434
Not Available
10
Master cil. (alluminium lever)
CM064301
Not Available
10
Front brakes pump assembly (Heng Tong)
CM074901
£71,10 Unit Price incl. VAT
11
Brake lever
497042
£12,32 Unit Price incl. VAT
11
Brake lever
646833
Not Available
12
stop Button
584480
Not Available
12
stop Button
583575
£10,80 Unit Price incl. VAT
13
Grip, l.h.
271452
£11,24 Unit Price incl. VAT
14
Brakes pump
CM064404
Not Available
14
Rear master cylinder Heng Tong
CM074801
£83,42 Unit Price incl. VAT
15
Flat elastic washer with internal toothing 17x10,3x2
012543
Not Available
16
Adjuster screw
269145
£2,58 Unit Price incl. VAT
17
Nut
020105
Not Available
18
Screw with bushing
123394
£2,69 Unit Price incl. VAT
19
Ring 38,3x27x1,2
562923
£0,48 Unit Price incl. VAT
20
Nut
002613
Not Available

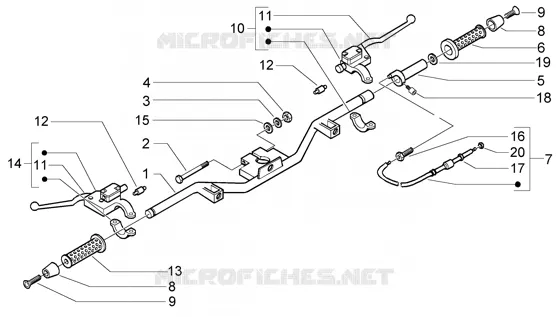

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
