1
Engine displacement
200
2
Model
GRANTURISMO
3
Year
2003
4
Trim
Granturismo L
5
Parts Catalog

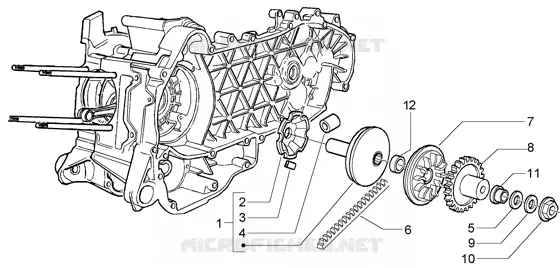

Driving pulley
6
Parts Diagram
Parts Catalog
Rear wheel shaft
by
Electric starter-damper pulley
Driving pulley
1
2
3
4
5
6
7
8
9
10
12
1
Roller housing
827699
Not Available
1
Half-pulley assy., driving
CM144404
£100,97 Unit Price incl. VAT
2
Roller contrast
485710
£14,02 Unit Price incl. VAT
2
Roller contrast
842204
£14,02 Unit Price incl. VAT
3
Sliding block
434855
Not Available
3
Sliding block
4348555
£2,10 Unit Price incl. VAT
4
Pin roller-set
4857135
£17,40 Unit Price incl. VAT
5
Plain washer 17x32x1
434885
£1,91 Unit Price incl. VAT
6
V-belt
840908
£118,28 Unit Price incl. VAT
7
Fixed pulley
834774
£42,08 Unit Price incl. VAT
8
Torque limiter
840815
Not Available
9
Plain washer
433391
£4,52 Unit Price incl. VAT
10
Flanged nut M12
436783
Not Available
12
O-ring
832508
£1,82 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
