Parts Catalog

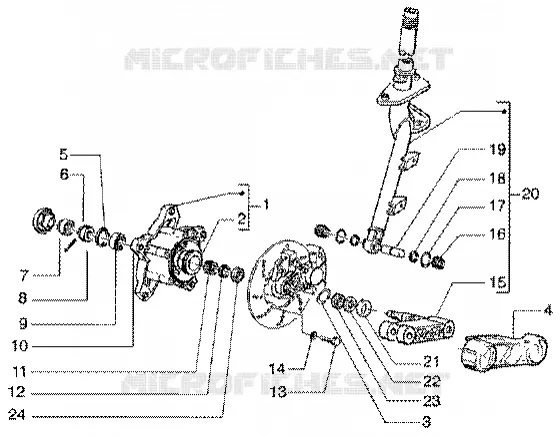

Steering column-disc brake
6
Parts Diagram
Parts Catalog
Steering bearing ball tracks
by
Disc brake caliper
Steering column-disc brake
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Front wheel hub
560284
Not Available
2
Ring gear counts Km socket
267818
£33,11 Unit Price incl. VAT
3
Washer
177414
£1,62 Unit Price incl. VAT
4
Front suspension arm cover
561433
Not Available
5
Nut
021114
Not Available
6
Cap
177609
£3,76 Unit Price incl. VAT
7
Cover
182546
Not Available
8
Split pin
012789
Not Available
9
Snap ring
006635
Not Available
10
Bearing
177610
£20,51 Unit Price incl. VAT
11
Roller cage
177442
£7,33 Unit Price incl. VAT
12
Gasket ring
177443
£3,55 Unit Price incl. VAT
13
Hex socket screw M6x20
271147
Not Available
14
Spring washer 6,4x11x0,5
006966
Not Available
15
Suspension arm
2737115
Not Available
16
Drawn cap
137146
£17,08 Unit Price incl. VAT
17
Gasket
006731
Not Available
18
Gasket ring
119219
£1,58 Unit Price incl. VAT
19
Piston pin
177451
£22,88 Unit Price incl. VAT
20
Steering column tube
5649775
Not Available
21
O-ring
177408
£1,33 Unit Price incl. VAT
22
Washer
177445
£1,62 Unit Price incl. VAT
23
Ring
177521
£1,62 Unit Price incl. VAT
24
Circlip
006422
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
