1
Engine displacement
150
2
Model
ET4
3
Year
0
4
Trim
ET4 150 Leader
5
Parts Catalog
Carburettor (Dell'Orto)
6
Parts Diagram
Parts Catalog
Carburettor (Walbro-Keihin)
by
Carburettor

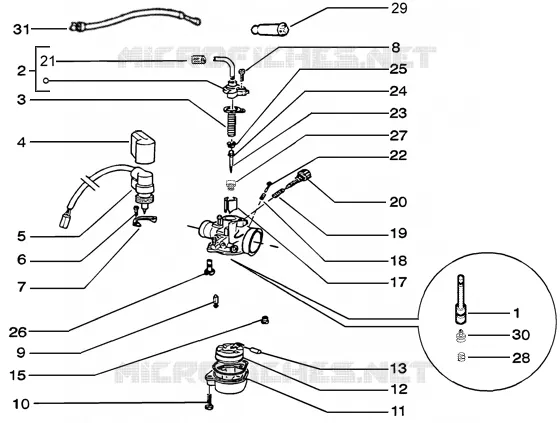

Carburettor (Dell'Orto)
1
2
3
4
5
6
7
8
9
10
11
12
13
15
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
Diffuser
CM119401
Not Available
2
Cover
829854
Not Available
2
Cover
CM114101
£16,21 Unit Price incl. VAT
3
Spring
829858
Not Available
4
Guard
829857
Not Available
5
El. start device
829856
Not Available
6
screw
289575
£2,18 Unit Price incl. VAT
7
Plate
288863
£2,48 Unit Price incl. VAT
8
screw
432413
Not Available
9
Fuel closing needle
CM128502
£16,34 Unit Price incl. VAT
10
Float chamber fixing screw
288862
£3,06 Unit Price incl. VAT
11
Float chamber
CM111501
Not Available
12
Float
832061
Not Available
13
Float pin
288881
£1,84 Unit Price incl. VAT
15
Main jet
CM111713
Not Available
15
Maximum jet
CM111701
Not Available
17
Gas valve
CM112101
Not Available
18
Spring
085285
Not Available
19
Spring
829871
£0,74 Unit Price incl. VAT
20
Screw
829860
Not Available
21
screw
288868
£5,72 Unit Price incl. VAT
22
Screw
CM111901
£13,54 Unit Price incl. VAT
23
Conical pin
CM111801
Not Available
24
O-ring
432416
Not Available
25
Lock
829859
Not Available
26
Idling jet
CM111601
Not Available
26
Idle jet
CM111604
Not Available
27
Throttle transmission nipple
829864
Not Available
28
Cool. Pump piston
829865
Not Available
29
Throttle cable cap
289903
Not Available
30
Cool. Pump piston spring
829866
Not Available
31
Throttle transmiss.
599312
£43,93 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
