1
Engine displacement
180
2
Model
HEXAGON
3
Year
0
4
Trim
Hexagon LXT
5
Parts Catalog

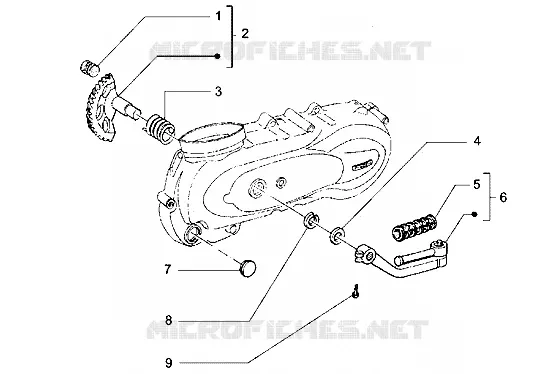

Starter lever
6
Parts Diagram
Parts Catalog
Starting motor
by
Oil pump
Starter lever
1
2
3
4
5
6
7
8
9
1
Pad
433603
Not Available
2
Start.shaft
434087
Not Available
3
Starter lever return spring
289495
£8,69 Unit Price incl. VAT
4
Washer 16,3x23,8
433987
£0,60 Unit Price incl. VAT
5
Guard
286217
£29,41 Unit Price incl. VAT
6
Start. lever
827632
£55,13 Unit Price incl. VAT
7
Cover
483859
£1,87 Unit Price incl. VAT
8
Circlip
006416
Not Available
9
Screw w/ flange M6x25
414837
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
