1
Engine displacement
180
2
Model
HEXAGON
3
Year
0
4
Trim
Hexagon LXT
5
Parts Catalog
Silencer
6
Parts Diagram
Parts Catalog
Air cleaner
by
Engine
Silencer
1
2
3
4
6
7
7
8
9
10
11
12
13
14
15
16
17
1
screw M5x10
433800
£0,86 Unit Price incl. VAT
2
Spring washer 8,5x5,1x1,5
016405
Not Available
3
Plain washer 5,4x10x0,8
003055
Not Available
4
Guard
480990
Not Available
6
Nut
001564
Not Available
7
Spring washer 13,75x8,15x4,5
016408
Not Available
8
Washer
016604
Not Available
9
Silencer
480972
Not Available
10
Gasket
432127
Not Available
11
screw M8x30
015792
Not Available
12
Exhaust pipe
484344
Not Available
13
Flanged nut
015341
Not Available
14
Gasket
431600
Not Available
15
Hex socket screw
826298
£1,20 Unit Price incl. VAT
16
Spring
273512
Not Available
17
Belleville spring
328206
£0,89 Unit Price incl. VAT

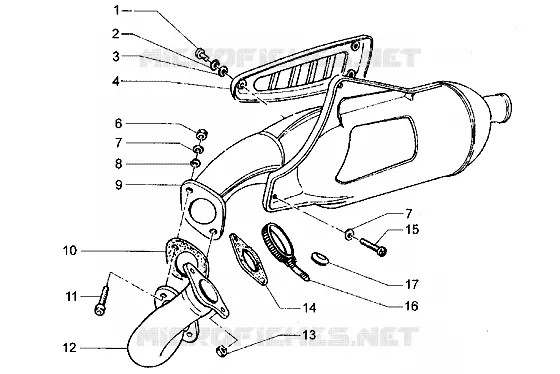

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
