1
Engine displacement
300
2
Model
GTS
3
Year
2019
4
Trim
GTS 300 Supertech HPE 4T/4V ie Euro 4 ABS
5
Parts Catalog

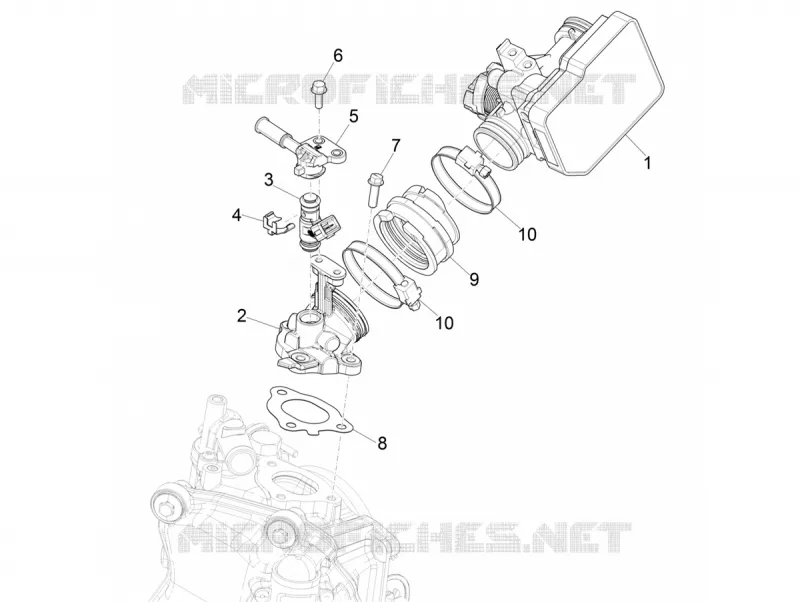

Throttle body - Injector - Inlet manifold
6
Parts Diagram
Parts Catalog
Wheel huosing - Mudguard
by
Rocking levers support unit
Throttle body - Injector - Inlet manifold
1
2
3
4
5
6
7
8
9
10
10
1
Boîtier papillon avec ECU
CM291701
£310,51 Unit Price incl. VAT
1
Boîtier papillon avec ECU
CM2917045
£329,38 Unit Price incl. VAT
2
Raccord d'admission
1A013200
Not Available
3
Injecteur
CM291201
£134,66 Unit Price incl. VAT
4
Spring
849898
£5,17 Unit Price incl. VAT
5
Support d'injecteur
1A013640
£28,87 Unit Price incl. VAT
6
Screw w/ flange M5x16
830061
£2,48 Unit Price incl. VAT
6
Vis bride
1A015812
£1,43 Unit Price incl. VAT
7
Hex screw M6x20
018639
Not Available
8
Joint de raccord d'admission
1A009942
£5,02 Unit Price incl. VAT
9
Manchon corps papil.
1A015944
Not Available
9
Manchon corps papil.
1A012958
Not Available
10
Hose clamp
614188
£4,90 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
