1
Engine displacement
300
2
Model
GTS
3
Year
2019
4
Trim
GTS 300 Supertech HPE 4T/4V ie Euro 4 ABS
5
Parts Catalog
Handlebars - Master cil.
6
Parts Diagram
Parts Catalog
Side cover - Spoiler
by
Stater - Electric starter
Handlebars - Master cil.
1
2
3
4
5
6
7
8
9
9
10
10
11
11
12
13
14
15
16
17
18
19
1
Guidon avec pièces internes
1B006324
Not Available
1
Guidon avec pièces internes
1B006828
Not Available
2
Hex socket screw
668874
£3,35 Unit Price incl. VAT
3
Flat elastic washer with internal toothing 17x10,3x2
012543
Not Available
4
Flat washer 18x10,2x2,5
267917
£0,36 Unit Price incl. VAT
5
Nut M10
015330
Not Available
6
Manchon commande accélérateur complet
CM087727
£120,73 Unit Price incl. VAT
6
Manchon commande accélérateur complet
CM087722
£120,88 Unit Price incl. VAT
7
Grip, r.h.
CM083802
£20,27 Unit Price incl. VAT
8
Grip, l.h.
CM083801
£20,27 Unit Price incl. VAT
9
Term.poids antivib.
1B005750
£52,58 Unit Price incl. VAT
9
Anti vib.weight trailing
673243
£22,13 Unit Price incl. VAT
10
screw M6x55
271434
Not Available
11
Spring
657046
£2,44 Unit Price incl. VAT
12
Pompe frein arrière
CM295603
£106,42 Unit Price incl. VAT
13
Brake lever
497042
£12,32 Unit Price incl. VAT
14
Maître-cylindre de frein hydraulique avant
CM295304
£103,96 Unit Price incl. VAT
15
Brake lever
497042
£12,32 Unit Price incl. VAT
16
kit purge du système de freinage
1R000467
£21,07 Unit Price incl. VAT
17
Gasket
006731
Not Available
18
Rondelle 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
19
Bleeder raccord
AP8133945
£27,12 Unit Price incl. VAT

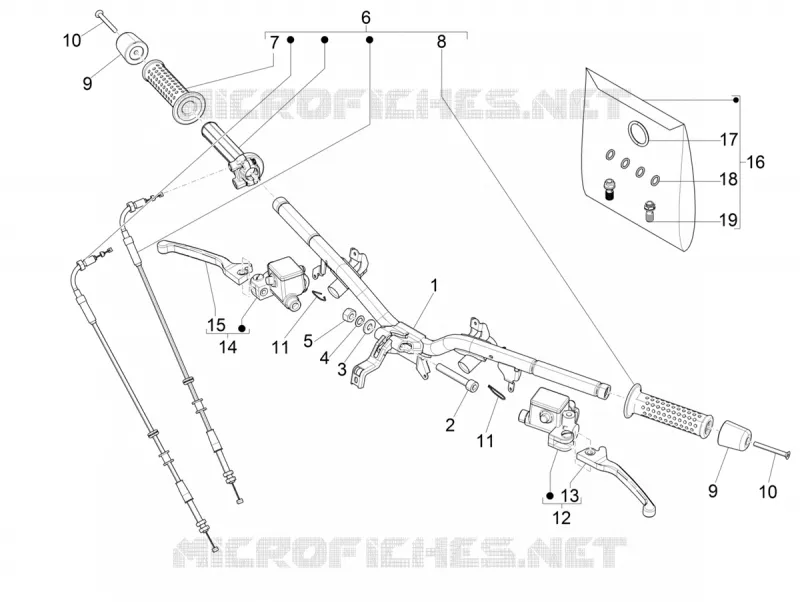

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
