1
Engine displacement
300
2
Model
BEVERLY
3
Year
2023
4
Trim
Beverly 300 4T/4V HPE Euro 5 ABS
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Helmet huosing - Undersaddle
by
Front glove-box - Knee-guard panel

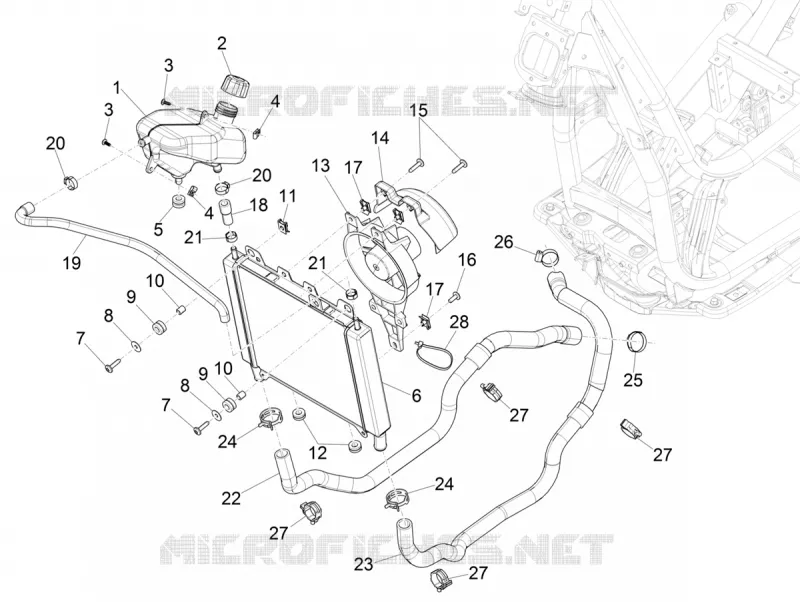

Cooling system
1
2
3
3
4
5
6
7
7
8
8
9
9
10
10
11
12
13
14
15
16
17
17
18
19
20
20
21
21
22
23
24
24
25
26
27
27
27
27
28
1
Réservoir
1B007072
£79,73 Unit Price incl. VAT
2
Expansion tank plug
623673
£17,92 Unit Price incl. VAT
3
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
4
Spring plate
CM017410
£0,71 Unit Price incl. VAT
5
Cylindrical cable grommet
576565
£0,89 Unit Price incl. VAT
6
Water cooler
656528
£208,00 Unit Price incl. VAT
7
screw M6x25
CM179305
£1,24 Unit Price incl. VAT
8
Washer d6,2x20x1
013092
Not Available
9
Upper rubber
351782
£2,02 Unit Price incl. VAT
10
Spacer
273288
£1,87 Unit Price incl. VAT
11
Spring plate M6
254485
£1,64 Unit Price incl. VAT
12
Lower rubber
258904
£1,54 Unit Price incl. VAT
13
Electric fan assy.
58211R
£211,80 Unit Price incl. VAT
14
Fan shroud
672464
£15,47 Unit Price incl. VAT
15
screw M6x25
CM179305
£1,24 Unit Price incl. VAT
16
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
17
Spring plate M6
254485
£1,64 Unit Price incl. VAT
18
Tuyau retour radiateur-réservoir
1B007742
£7,84 Unit Price incl. VAT
19
Tuyau refoulement réservoir-radiateur
1B007741
£11,77 Unit Price incl. VAT
20
Hose clamp
CM001904
£1,51 Unit Price incl. VAT
21
Hose clamp
CM001902
Not Available
22
Radiator pump connection pipe
657489
£84,56 Unit Price incl. VAT
23
Radiator big end connection pipe
57349R
£101,14 Unit Price incl. VAT
24
Hose clamp
CM226911
£3,52 Unit Price incl. VAT
25
Hose clamp
CM001922
£1,99 Unit Price incl. VAT
26
Hose clamp
675874
Not Available
27
Pipes/cables retainer spring
CM006903
£3,58 Unit Price incl. VAT
28
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
