1
Engine displacement
300
2
Model
BEVERLY
3
Year
2023
4
Trim
Beverly 300 4T/4V HPE Euro 5 ABS
5
Parts Catalog

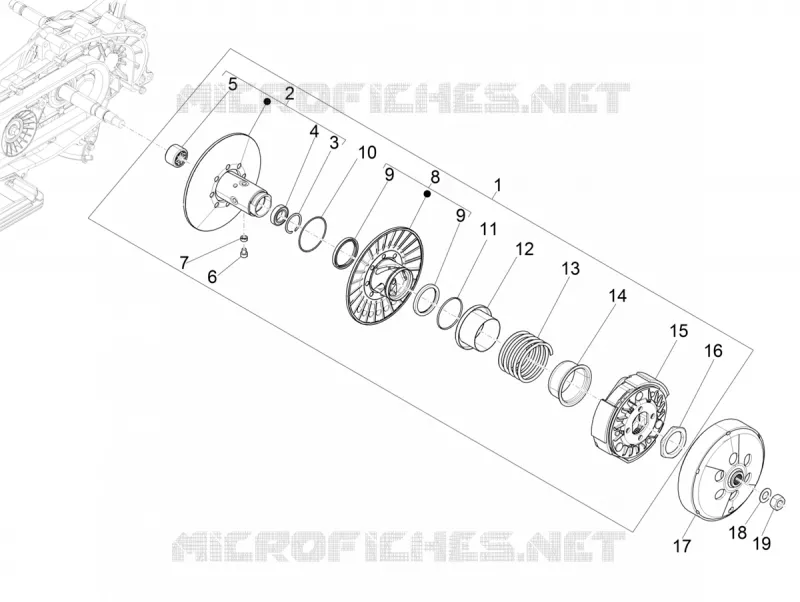

Driven pulley
6
Parts Diagram
Parts Catalog
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
by
Driving pulley
Driven pulley
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
1
Poulie entraînée avec embrayage
CM316301
£242,60 Unit Price incl. VAT
2
Poulie secondaire fixe
1A013202
£148,73 Unit Price incl. VAT
3
Snap ring
483226
£1,87 Unit Price incl. VAT
4
Roller cage 20x29x18
82518R
£29,20 Unit Price incl. VAT
5
Bearing 17x30x7
82753R
£21,72 Unit Price incl. VAT
6
Axe de guidage
1A013269
£3,68 Unit Price incl. VAT
7
Rouleau
1A013271
£3,25 Unit Price incl. VAT
8
Poulie secondaire mobile
1A013204
£138,66 Unit Price incl. VAT
9
Gasket ring
431089
£8,58 Unit Price incl. VAT
10
Gasket
430585
£0,88 Unit Price incl. VAT
11
Bague d'étanchéité 50,52x1,78
855636
£4,85 Unit Price incl. VAT
12
Cup
833674
£31,13 Unit Price incl. VAT
13
Variator spring
833673
£11,71 Unit Price incl. VAT
14
Clutch side cap
487936
£8,76 Unit Price incl. VAT
15
Gr.embrayage
CM3117015
£105,16 Unit Price incl. VAT
16
Ring nut
433232
£13,28 Unit Price incl. VAT
17
Clutch drum
1A003991
£76,48 Unit Price incl. VAT
18
Flat washer 22x12,1x1
274246
£1,00 Unit Price incl. VAT
19
Nut M12x1.25
486324
£1,04 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
