1
Engine displacement
300
2
Model
GTV
3
Year
2020
4
Trim
GTV 300 HPE SEI GIORNI ie Euro 4 ABS
5
Parts Catalog
Air filter
6
Parts Diagram
Parts Catalog
Side cover - Spoiler
by
Saddle/seats
Air filter
1
2
3
4
4
5
6
7
8
9
10
10
10
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
38
39
40
41
42
43
44
45
46
47
48
1
Boîte filtre
1A013976
Not Available
2
Air filter
1A007327
£9,42 Unit Price incl. VAT
3
Gasket
1A006644
£16,51 Unit Price incl. VAT
4
Self tapping screw L=20 mm
267958
£0,76 Unit Price incl. VAT
5
Air filter closing knob
1A006715
£11,62 Unit Price incl. VAT
6
Cap
827831
£4,75 Unit Price incl. VAT
7
Hose clamp
614188
£4,90 Unit Price incl. VAT
8
Manchon de filtre à air/boîtier papillon
1A013977
Not Available
9
Hose clamp
CM002908
£1,27 Unit Price incl. VAT
10
Knurled bushing
1A006247
£1,24 Unit Price incl. VAT
11
Cap
B015752
£7,78 Unit Price incl. VAT
12
Hose clamp
CM002910
£0,98 Unit Price incl. VAT
13
Screw w/ flange
874552
£1,27 Unit Price incl. VAT
14
Notched washer 6,6x11x0
012533
Not Available
15
Flat washer 6,4x12x1
003056
Not Available
16
Spring plate M6
254485
£1,64 Unit Price incl. VAT
17
Intake hose
672660
£13,49 Unit Price incl. VAT
18
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT
19
Hose clamp
CM001904
£1,51 Unit Price incl. VAT
20
Duction pipe
1B004610
Not Available
21
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
22
Spring plate M6
254485
£1,64 Unit Price incl. VAT
23
screw
CM179202
£1,27 Unit Price incl. VAT
24
Chambre d'admission
1B004609
Not Available
25
Gasket
675421
£9,40 Unit Price incl. VAT
26
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
27
Spring plate M6
254485
£1,64 Unit Price incl. VAT
28
Hose clamp
260918
£4,78 Unit Price incl. VAT
29
Boîte filtre
1A011905
£240,43 Unit Price incl. VAT
30
Filtre air PREMIUM
8319970P
£10,25 Unit Price incl. VAT
31
Packing
831995
£16,56 Unit Price incl. VAT
32
Air filter closing knob
479132
£11,59 Unit Price incl. VAT
33
Self-tap screw M3x20
258146
£0,65 Unit Price incl. VAT
34
Cap
827831
£4,75 Unit Price incl. VAT
35
Hose clamp
CM002910
£0,98 Unit Price incl. VAT
36
Knurled bushing
830056
£1,27 Unit Price incl. VAT
37
Manchon de filtre à air/boîtier papillon
1A011902
£57,70 Unit Price incl. VAT
38
Hose clamp
260918
£4,78 Unit Price incl. VAT
39
Bushing
830057
£3,78 Unit Price incl. VAT
40
Special cap screw M6x55
1B000678
£0,38 Unit Price incl. VAT
41
Notched washer 6,6x11x0
012533
Not Available
42
Flat washer 6,4x12x1
003056
Not Available
43
Spring plate M6
254485
£1,64 Unit Price incl. VAT
44
Special cap screw M6x55
1B000678
£0,38 Unit Price incl. VAT
45
Notched washer 6,6x11x0
012533
Not Available
46
Flat washer 6,4x12x1
003056
Not Available
47
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
48
Hose clamp
260918
£4,78 Unit Price incl. VAT

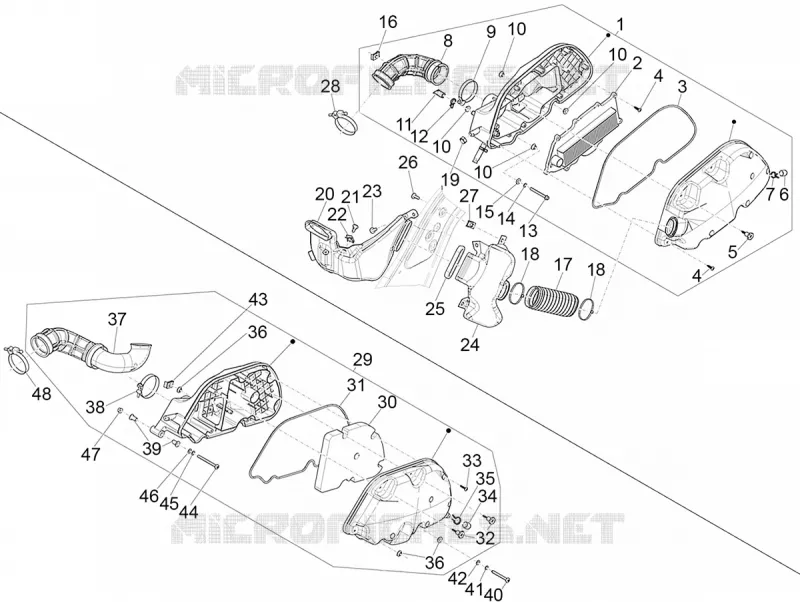

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
