1
Engine displacement
300
2
Model
GTV
3
Year
2020
4
Trim
GTV 300 HPE SEI GIORNI ie Euro 4 ABS
5
Parts Catalog

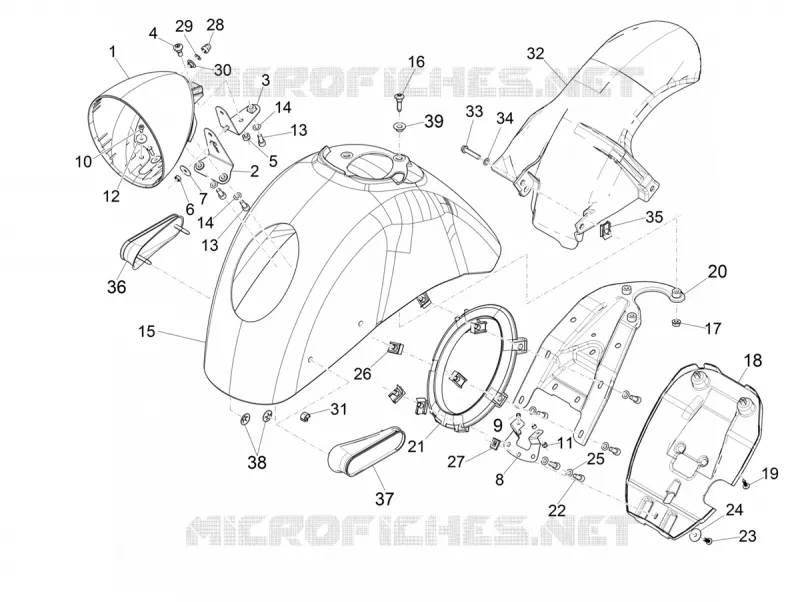

Wheel huosing - Mudguard
6
Parts Diagram
Parts Catalog
Frame/bodywork
by
Handlebars - Master cil.
Wheel huosing - Mudguard
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
15
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
1
Cache de projecteur
1B006725400GP
Not Available
1
Cache de projecteur
1B006725400EZ
Not Available
1
Headlight cap raw (unpainted)
1B006725
£132,76 Unit Price incl. VAT
2
Bracket with up
647886
£19,09 Unit Price incl. VAT
3
Headlight anchoring bracket
647887
£15,80 Unit Price incl. VAT
4
Metric screw TBC
259348
£1,04 Unit Price incl. VAT
5
Self locking nut M6
195482
£1,27 Unit Price incl. VAT
6
Nut
012112
Not Available
7
Washer
004021
Not Available
8
Anchoring bracket
648060
£16,92 Unit Price incl. VAT
9
Spacer
648059
£3,23 Unit Price incl. VAT
10
screw
621914
£2,48 Unit Price incl. VAT
11
Self locking nut
577620
£0,97 Unit Price incl. VAT
12
Washer
013963
Not Available
13
screw
239687
£0,37 Unit Price incl. VAT
14
Spring washer 12x6,4x0,5
006976
Not Available
15
Garde-boue avant
64789140EZ
Not Available
15
Garde-boue avant
64789140GP
Not Available
15
Front mudguard
647891
£259,92 Unit Price incl. VAT
16
Screw with shank M6x25
648294
£1,24 Unit Price incl. VAT
17
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
18
Front splash guard
1C001852
£14,93 Unit Price incl. VAT
19
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
20
Headlight support clamp
1C001236
£46,02 Unit Price incl. VAT
21
Suspension flange
648061
£26,03 Unit Price incl. VAT
22
screw
239687
£0,37 Unit Price incl. VAT
23
screw
268418
£1,02 Unit Price incl. VAT
24
Washer
004021
Not Available
25
Spring washer 12x6,4x0,5
006976
Not Available
26
Spring plate M6
254485
£1,64 Unit Price incl. VAT
27
Flanged plate
CM017413
£1,13 Unit Price incl. VAT
28
Nut
648349
£1,26 Unit Price incl. VAT
29
Spring washer 6,4x11x0,5
006966
Not Available
30
Knurled bushing
830056
£1,27 Unit Price incl. VAT
31
Elastic spring
231590
£0,60 Unit Price incl. VAT
32
Garde-boue Ar.
1B005489
£20,33 Unit Price incl. VAT
33
Screw w/ flange M6x30
B016792
£1,27 Unit Price incl. VAT
34
Spring washer 6,4x11x0,5
006966
Not Available
35
Spring plate M6
254485
£1,64 Unit Price incl. VAT
36
Catadioptre latéral D
1B006554
£24,48 Unit Price incl. VAT
37
Catadioptre latéral G
1B006553
£24,48 Unit Price incl. VAT
38
Spring plate
181351
£0,98 Unit Price incl. VAT
39
Bush
1C001238
£2,53 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
