1
Engine displacement
150
2
Model
SPRINT
3
Year
2020
4
Trim
Sprint 150 Sport Euro 5 ABS
5
Parts Catalog
Rocking levers support unit
6
Parts Diagram
Parts Catalog
Brakes pipes - Calipers (ABS)
by
CENTRAL COVER - FOOTRESTS

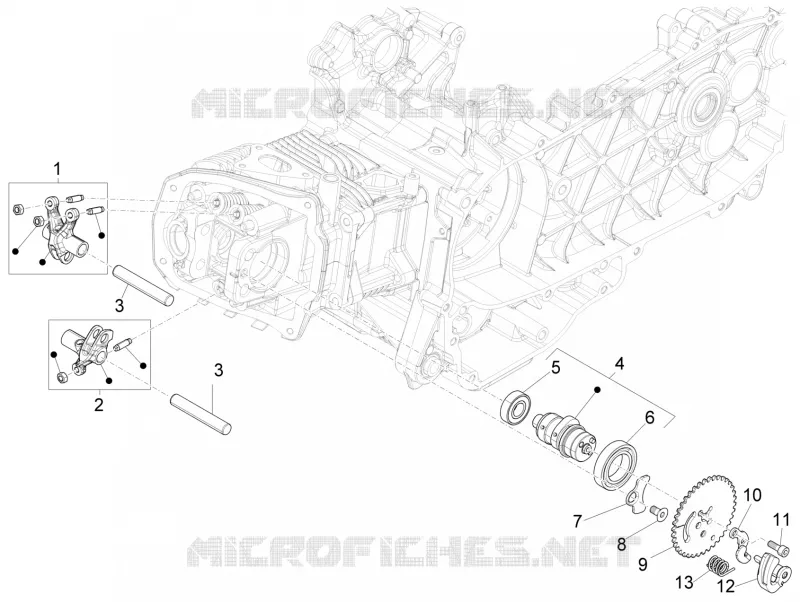

Rocking levers support unit
1
1
2
2
3
3
3
3
4
4
4
4
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
12
12
12
12
13
13
1
Rocker arm inlet
1A003237R
Not Available
2
Rocker arm exhaust
1A003238R
Not Available
3
Rocker arms axis
B014047
£7,61 Unit Price incl. VAT
4
Camshaft cpl. "2"
1A0037710B
£132,00 Unit Price incl. VAT
4
Camshaft cpl. "1"
1A0037710A
£132,00 Unit Price incl. VAT
4
Camshaft cpl. "3"
1A0037710C
£132,00 Unit Price incl. VAT
5
Radial bearing 12X28X8
83029R
£5,51 Unit Price incl. VAT
6
Radial bearing 25x42x9
83030R
£7,38 Unit Price incl. VAT
7
Camshaft plate
B013836
£5,11 Unit Price incl. VAT
8
Screw
B016474
£6,37 Unit Price incl. VAT
9
Timing system gear
B018675
£8,92 Unit Price incl. VAT
10
Decompressor plate
B017933
£5,11 Unit Price incl. VAT
11
TSE screw
1A003919
£1,27 Unit Price incl. VAT
12
Decompression counterweight "2"
CM266202
£8,89 Unit Price incl. VAT
12
Decompression counterweight "1"
CM266201
£10,39 Unit Price incl. VAT
12
Decompression counterweight "3"
CM266203
£10,20 Unit Price incl. VAT
13
Decompression spring
B014903
£4,99 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
