1
Engine displacement
150
2
Model
SPRINT
3
Year
2020
4
Trim
Sprint 150 Sport Euro 5 ABS
5
Parts Catalog
Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Fork/steering tube - Steering bearing unit
by
ENGINE ASSEMPLY

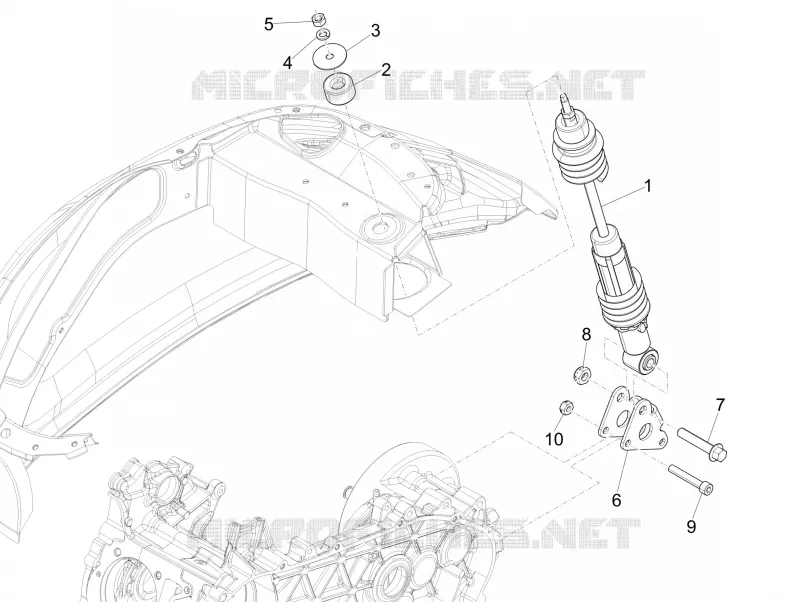

Rear suspension - Shock absorber/s
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
1
Amortisseur arrière complet
1C003149
£101,21 Unit Price incl. VAT
2
Upper buffer
178150
£2,69 Unit Price incl. VAT
3
Flat washer
267038
£1,02 Unit Price incl. VAT
4
Spring washer 13,75x8,15x4,5
016408
Not Available
5
Nut M8
021108
Not Available
6
Rear Shock absorber fixing bracket
667872
£11,90 Unit Price incl. VAT
7
Screw w/ flange M10
268158
£1,87 Unit Price incl. VAT
8
Self locking nut M10
002440
Not Available
9
Hex socket screw M8x50
844483
£0,65 Unit Price incl. VAT
10
Nut M8
020008
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
