Parts Catalog

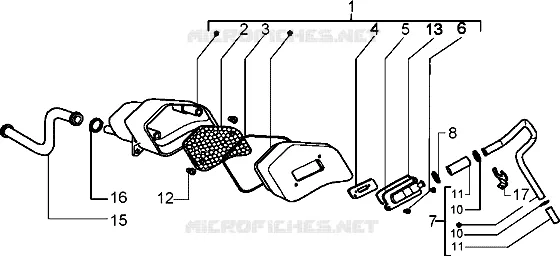

Secondary air box
6
Parts Diagram
Parts Catalog
Carburettor
by
Air cleaner
Secondary air box
1
2
3
4
5
6
7
8
10
10
11
11
12
13
15
16
17
1
Air cleaner case
830504
Not Available
1
Complete s.a.s. box kit
8318594
Not Available
2
Air filter
830314
£13,60 Unit Price incl. VAT
3
Gasket
486943
£9,23 Unit Price incl. VAT
4
Reeds bracket
832356
Not Available
4
Reeds bracket
825051
Not Available
5
Cover sas
827209
£21,44 Unit Price incl. VAT
6
Self-tap screw
478533
£0,98 Unit Price incl. VAT
7
Air pipe sas
833740
Not Available
7
pipe
830968
Not Available
8
Hose clamp
CM001905
£1,62 Unit Price incl. VAT
10
Hose clamp
827444
£2,45 Unit Price incl. VAT
11
Hose
827443
£16,98 Unit Price incl. VAT
12
TBIC screw
015597
Not Available
13
Gasket
486943
£9,23 Unit Price incl. VAT
15
Intake pipe sas
827208
£6,22 Unit Price incl. VAT
16
Hose clamp
CM001905
£1,62 Unit Price incl. VAT
17
Fairlead
827794
£1,73 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
