Engine displacement
50
2
Model
TYPHOON
3
Year
2004
4
Trim
Typhoon
5
Parts Catalog
Chassis - Central stand
6
Parts Diagram
Parts Catalog
catalytic silencer
by
Front shield-Footboard-Spoiler
Chassis - Central stand
1
2
3
4
4
4
5
6
7
7
8
9
10
11
11
12
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
1
Not available
2968406
Not Available
2
Nut M8x6,5
020108
Not Available
3
Washer
118563
£1,81 Unit Price incl. VAT
4
Spring washer 13,75x8,15x4,5
016408
Not Available
5
screw
030074
Not Available
6
Stop buffer
582885
£3,53 Unit Price incl. VAT
7
Hex socket screw M8x16
031116
Not Available
8
Gasket ring
271695
£1,16 Unit Price incl. VAT
9
Central stand
445367
Not Available
10
Pin
583603
£5,52 Unit Price incl. VAT
11
Spring
278940
£6,64 Unit Price incl. VAT
12
Central stand, assy.
581506
Not Available
13
Spring
278940
£6,64 Unit Price incl. VAT
14
Maintenance
272929
£43,92 Unit Price incl. VAT
15
Foot rest
577345
£23,53 Unit Price incl. VAT
15
Foot rest
296511
£73,56 Unit Price incl. VAT
16
Nut M8x6,5
020108
Not Available
17
Flat washer 15x8,4x1,5
003058
Not Available
18
Gasket ring
431122
Not Available
19
Spring washer 13,75x8,15x4,5
016408
Not Available
20
Plain washer 8,2x20x2,5
013861
Not Available
21
screw
030080
Not Available
22
Nut M8x6,5
020108
Not Available
23
Pin
295593
£4,24 Unit Price incl. VAT
24
Foot rest
295451
£17,99 Unit Price incl. VAT
25
Elastic spring
259933
£0,62 Unit Price incl. VAT
26
Ball D6
295591
Not Available
27
Washer
006177
Not Available
27
Rubber mat stop foot rest
295592
Not Available
28
Flat washer 15x8,4x1,5
003058
Not Available
28
Split pin
003208
Not Available
29
Central stand, assy.
581505
£78,22 Unit Price incl. VAT
30
Premisphere spring
295590
Not Available

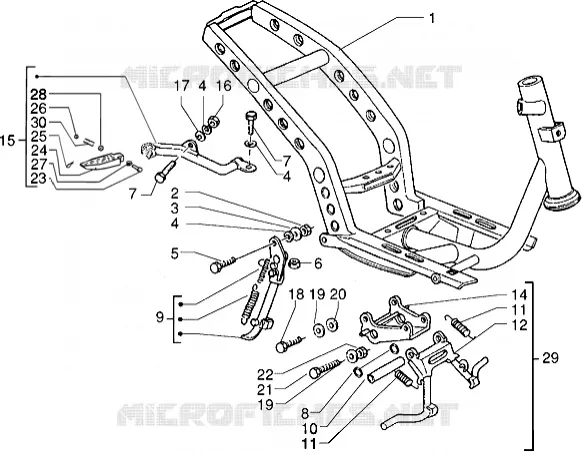

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
