1
Engine displacement
50
2
Model
TYPHOON
3
Year
2013
4
Trim
Typhoon 2T Euro 3
5
Parts Catalog
Front headlamps - Turn signal lamps
6
Parts Diagram
Parts Catalog
Stand/s
by
Transmissions

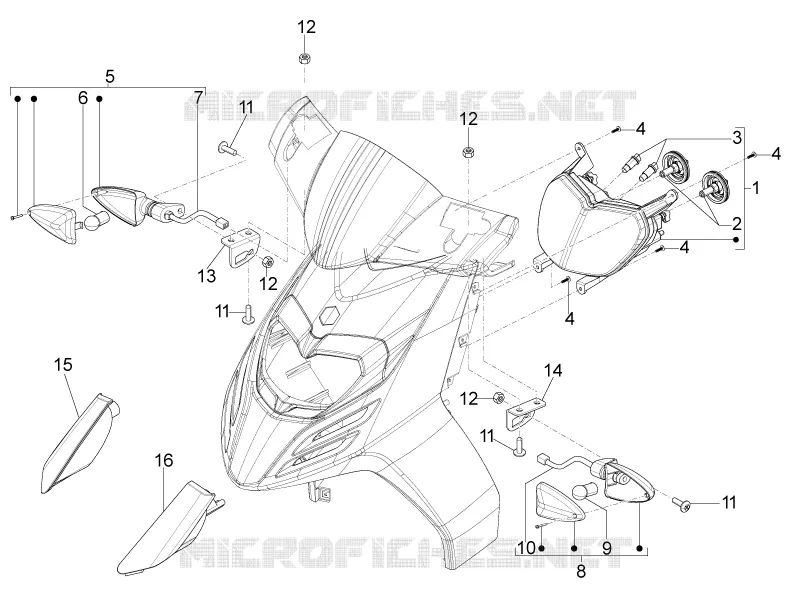

Front headlamps - Turn signal lamps
1
2
3
4
4
4
4
5
6
7
8
9
10
11
11
11
11
11
12
12
12
13
14
15
16
1
Front headlight
642021
£265,26 Unit Price incl. VAT
2
Lamp H8
00H01004131
£22,07 Unit Price incl. VAT
3
Lamp 12V-3W
294131
£2,70 Unit Price incl. VAT
4
Self tapping screw
270723
Not Available
5
Right rear or left front turn indicators
642023
£34,00 Unit Price incl. VAT
6
Lamp 12V-10W
584332
£3,77 Unit Price incl. VAT
7
Right indicator cable assembly
664359
£10,61 Unit Price incl. VAT
8
Left rear or right front turn indicators
642024
£34,00 Unit Price incl. VAT
9
Lamp 12V-10W
584332
£3,77 Unit Price incl. VAT
10
Left indicator cable assembly
664361
£10,61 Unit Price incl. VAT
11
Screw M6x16
272836
£1,13 Unit Price incl. VAT
12
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
13
RH support
890236
£14,45 Unit Price incl. VAT
14
LH support
890235
£14,45 Unit Price incl. VAT
15
RH plug
890262
£80,02 Unit Price incl. VAT
16
LH plug
890263
£80,02 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
