1
Engine displacement
50
2
Model
TYPHOON
3
Year
2013
4
Trim
Typhoon 2T Euro 3
5
Parts Catalog

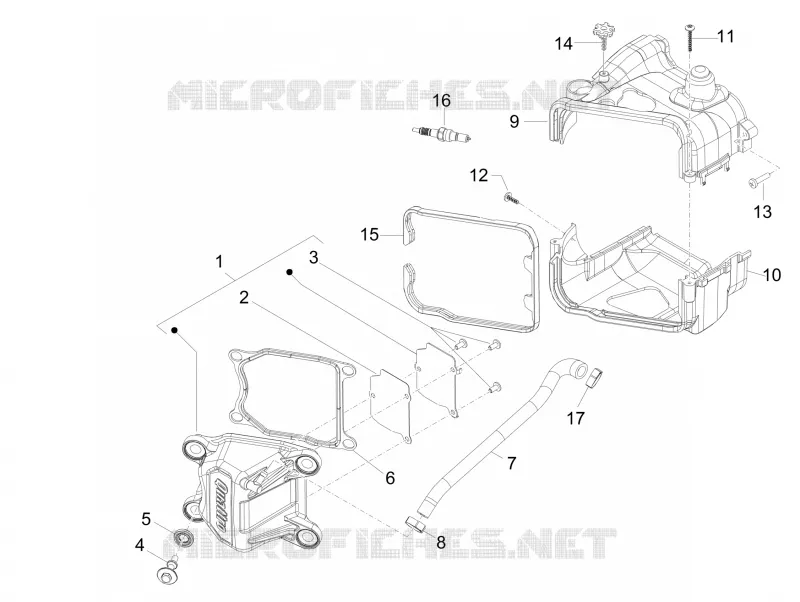

Cylinder head cover
6
Parts Diagram
Parts Catalog
Cylinder-piston-wrist pin unit
by
Crankcase cover - Crankcase cooling
Cylinder head cover
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Head cover cpl.
848990
£69,48 Unit Price incl. VAT
2
Gasket
849012
£15,53 Unit Price incl. VAT
3
Self-tapping screw
430264
£0,62 Unit Price incl. VAT
4
Special screw
872635
£1,97 Unit Price incl. VAT
5
Damper drift
830249
£0,76 Unit Price incl. VAT
6
Gasket
845339
£17,05 Unit Price incl. VAT
7
Breather pipe
848993
£17,12 Unit Price incl. VAT
8
Hose clamp
CM002917
£14,78 Unit Price incl. VAT
9
Cooler cap
846992
£13,13 Unit Price incl. VAT
10
Cooler cap
846993
£13,15 Unit Price incl. VAT
11
screw
259577
£0,97 Unit Price incl. VAT
12
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
13
Screw M5x22
828662
£1,33 Unit Price incl. VAT
14
Screw with Knob
969339
£1,97 Unit Price incl. VAT
15
Gasket
846991
£11,71 Unit Price incl. VAT
16
Spark plug
641387
£37,94 Unit Price incl. VAT
17
Hose clamp
CM001904
£1,51 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
