1
Engine displacement
50
2
Model
TYPHOON
3
Year
2013
4
Trim
Typhoon 2T Euro 3
5
Parts Catalog
Carburettor, assembly - Union pipe
6
Parts Diagram
Parts Catalog
Front glove-box - Knee-guard panel
by
Front shield

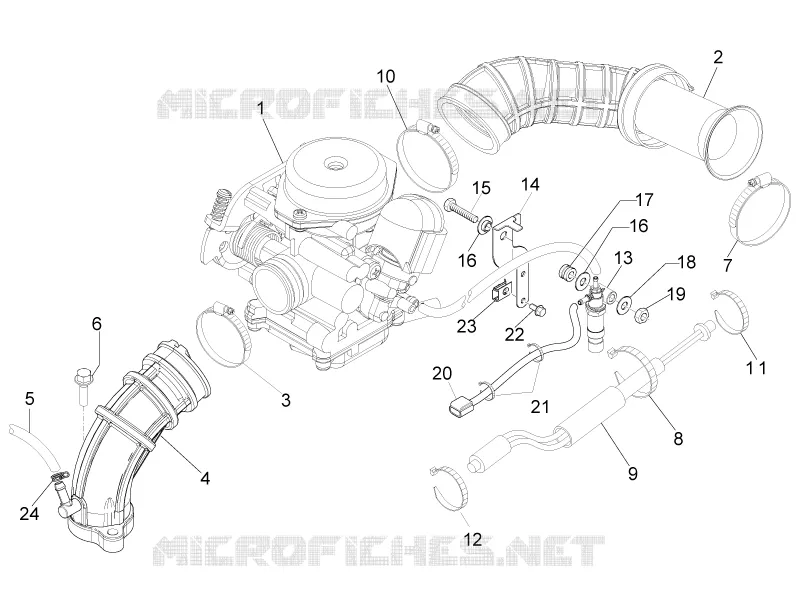

Carburettor, assembly - Union pipe
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
1
Carburettor keihin NCV20 AR8
CM158005
£401,26 Unit Price incl. VAT
2
Air cleaner sleeve
848680
£23,32 Unit Price incl. VAT
3
Hose clamp
709532
Not Available
4
Union
845737
£48,95 Unit Price incl. VAT
5
pipe I.700
CM027909
Not Available
6
Hex screw M6x20
018639
Not Available
7
Hose clamp
641764
£0,73 Unit Price incl. VAT
8
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT
9
Resistor Module
82961R
Not Available
10
Hose clamp
709532
Not Available
11
Hose clamp
CM001911
£10,52 Unit Price incl. VAT
12
Hose clamp
CM002901
£0,62 Unit Price incl. VAT
13
Solenoid
873270
£85,48 Unit Price incl. VAT
14
Support clamp
642290
£1,52 Unit Price incl. VAT
15
Hex screw
030039
Not Available
16
T bush
843213
£1,27 Unit Price incl. VAT
17
Fairlead
487665
£1,94 Unit Price incl. VAT
18
Plain washer 12x5.2x1
006078
Not Available
19
Nut
012112
Not Available
20
Instrument support
639632
£7,61 Unit Price incl. VAT
21
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
22
Screw w/ flange
484123
£0,54 Unit Price incl. VAT
23
Spring plate M5
248419
£2,00 Unit Price incl. VAT
24
Hose clamp
CM002902
£0,62 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
