Engine displacement
300
2
Model
X7
3
Year
2009
4
Trim
X7 ie Euro 3
5
Parts Catalog
Cylinder-piston-wrist pin unit
6
Parts Diagram
Parts Catalog
Crankshaft
by
Head unit - Valve
Cylinder-piston-wrist pin unit
1
2
3
4
5
6
7
8
9
10
11
11
1
Cyl.pist.-wrist pin assy unit
876457
£409,87 Unit Price incl. VAT
2
Piston + piston pin Cat.1
8764580001
£130,31 Unit Price incl. VAT
2
Piston + piston pin Cat.4
8764580004
£130,31 Unit Price incl. VAT
2
Piston + piston pin Cat.3
8764580003
£130,31 Unit Price incl. VAT
2
Piston + piston pin Cat.2
8764580002
£130,31 Unit Price incl. VAT
3
Compression ring Ø 75x1,5
874958
Not Available
4
Oil scraper ring Ø 75x1,2
874960
£39,20 Unit Price incl. VAT
5
Oil scraper ring Ø 75x2,5
876367
Not Available
6
Snap ring
875096
£1,24 Unit Price incl. VAT
7
Piston pin
875005
£11,50 Unit Price incl. VAT
8
Cylinder base gasket 0,8 mm
875114
£14,54 Unit Price incl. VAT
8
Cylinder base gasket 0,6 mm
875113
£14,40 Unit Price incl. VAT
8
Cylinder base gasket 0,4 mm
875112
£14,80 Unit Price incl. VAT
9
Locating dowel Ø7,5x12
277916
£6,38 Unit Price incl. VAT
10
Locating dowel Ø11x10
478115
Not Available
11
O-ring
478184
Not Available

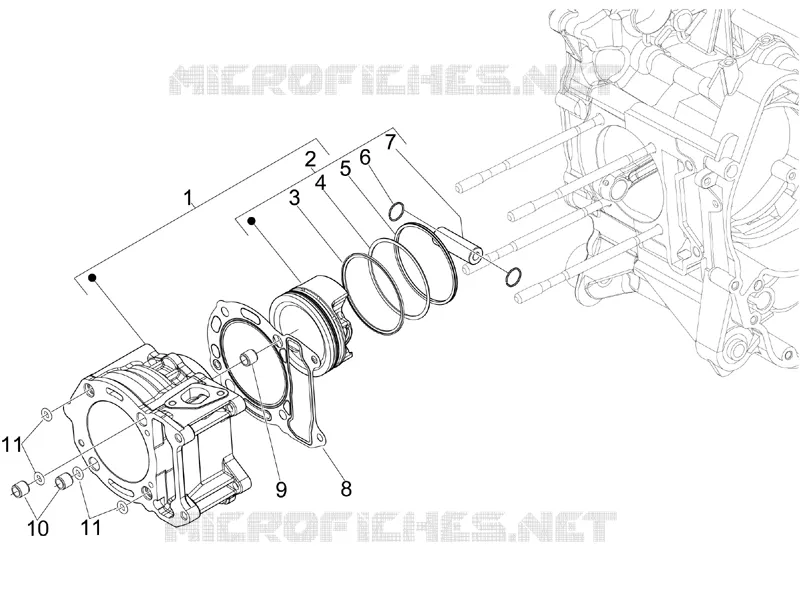

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
