Engine displacement
400
2
Model
X-EVO
3
Year
2009
4
Trim
X Evo Euro 3
5
Parts Catalog
Rear cover - Splash guard
6

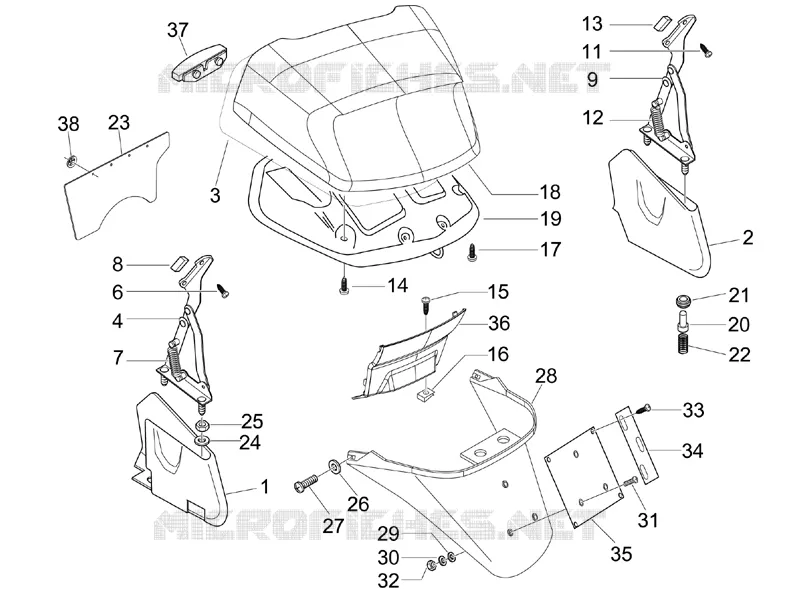

Parts Diagram
Parts Catalog
Air filter
by
Rear wheel
Rear cover - Splash guard
1
2
3
4
6
7
8
9
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
1
Guard
CM024201
£9,41 Unit Price incl. VAT
2
Guard
CM024202
£9,41 Unit Price incl. VAT
3
Gasket
561449
£63,19 Unit Price incl. VAT
4
Hinge with spring and left buffer
CM1774015
£56,50 Unit Price incl. VAT
6
Self tapping screw
296141
£1,39 Unit Price incl. VAT
7
Spring
653896
£7,22 Unit Price incl. VAT
8
Stop buffer
656083
Not Available
9
Hinge with spring and left buffer
CM1774025
£56,50 Unit Price incl. VAT
11
Self tapping screw
296141
£1,39 Unit Price incl. VAT
12
Spring
653896
£7,22 Unit Price incl. VAT
13
Stop buffer
656083
Not Available
14
Screw M6x16
272836
£1,13 Unit Price incl. VAT
15
Self-tap screw
576189
Not Available
16
Spring plate
CM017410
£0,71 Unit Price incl. VAT
17
Self tapping screw
297498
£0,60 Unit Price incl. VAT
18
Boot cover
62459400DF
Not Available
18
Boot cover
62459400XN2
Not Available
18
Boot cover
62459400ND
Not Available
18
Boot cover
62459400BR
Not Available
18
Boot cover
62459400EU
£82,38 Unit Price incl. VAT
18
Boot cover
62459400EV
£82,38 Unit Price incl. VAT
18
Boot cover
624594
Not Available
18
Boot cover
62459400ES
£185,70 Unit Price incl. VAT
18
Boot cover
6245940090
Not Available
19
Counter flap
620758
£63,48 Unit Price incl. VAT
20
Button
621097
£3,74 Unit Price incl. VAT
21
Maintenance
621098
£2,59 Unit Price incl. VAT
22
Spring
621099
£2,17 Unit Price incl. VAT
23
Engine splash guard
623641
Not Available
24
Flat washer 16x6,5x1,5
013880
Not Available
25
Nut
219277
£0,62 Unit Price incl. VAT
26
Washer 6,2x18x2
013950
Not Available
27
Screw w/ flange M6x16
434541
Not Available
28
Splash guard
623595000C
Not Available
29
Flat washer 4,2x12x1
013763
Not Available
30
Flat washer 4,2x7,6x0,9
016404
Not Available
31
screw M4x14
018591
Not Available
32
Nut M4
020104
Not Available
33
Plug screw
268596
£0,62 Unit Price incl. VAT
34
Number-plate extension
584877
£5,88 Unit Price incl. VAT
35
Number plate holder
584884
£31,69 Unit Price incl. VAT
36
Rear side closing
62359100BR
Not Available
36
Rear side closing
62359100ES
£29,42 Unit Price incl. VAT
36
Rear side closing
62359100EU
Not Available
36
Rear side closing
62359100DE
£29,42 Unit Price incl. VAT
36
Rear side closing
62359100EV
£29,42 Unit Price incl. VAT
36
Rear side closing
623591
Not Available
36
Rear side closing
62359100DF
Not Available
36
Rear side closing
62359100ND
Not Available
36
Rear side closing
62359100XN2
Not Available
37
Gasket connection
621347
£11,86 Unit Price incl. VAT
38
Spring plate
230359
£0,95 Unit Price incl. VAT
