Parts Catalog
Brakes pipes - Calipers
6

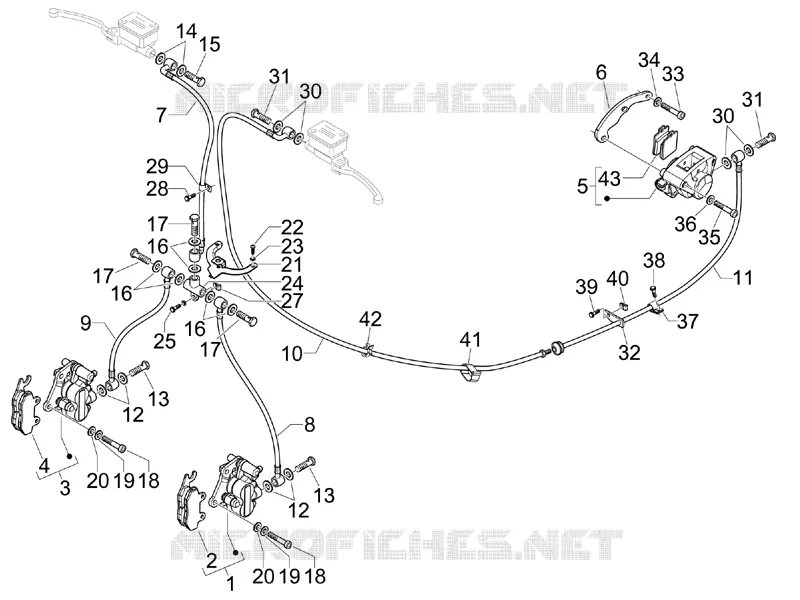

Parts Diagram
Parts Catalog
Frame/bodywork
by
Remote control switches - Battery - Horn
Brakes pipes - Calipers
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
15
16
16
16
17
17
17
18
18
19
19
20
20
21
22
23
24
25
27
28
29
30
30
31
31
32
33
34
35
36
37
38
39
40
41
42
43
1
Front disk brake caliper l.h. Heng Tong
CM073501
£167,29 Unit Price incl. VAT
2
Brake pads couple Heng Tong
647078
£48,58 Unit Price incl. VAT
3
Front disk brake caliper r.h. Heng Tong
CM073503
£167,29 Unit Price incl. VAT
4
Brake pads kit
647079
£30,66 Unit Price incl. VAT
5
Rear brake caliper
CM068304
£127,56 Unit Price incl. VAT
6
Pin connection bracket
649434
Not Available
7
Front brake pipe
647112
Not Available
8
Flexible front brake hose
648977
Not Available
9
BREAK PIPES
600474
£117,96 Unit Price incl. VAT
10
Rear brake pipe
647013
£40,26 Unit Price incl. VAT
11
Flexible front brake piping
647812
Not Available
12
Gasket
127927
£1,04 Unit Price incl. VAT
13
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
14
Gasket
127927
£1,04 Unit Price incl. VAT
15
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
16
Gasket
127927
£1,04 Unit Price incl. VAT
17
screw
127863
£1,31 Unit Price incl. VAT
18
screw
564486
Not Available
19
Washer
709110
Not Available
20
Washer
709646
Not Available
21
Joint support plate
647117
£9,41 Unit Price incl. VAT
22
Spring washer 6,4x11x0,5
006966
Not Available
23
Hex socket screw
122675
£0,38 Unit Price incl. VAT
24
Joint
136371
£8,23 Unit Price incl. VAT
25
Screw w/ flange M6x30
289731
Not Available
27
Spring plate M6
254485
£1,64 Unit Price incl. VAT
28
Screw w/ flange M6x16
434541
Not Available
29
Hose clamp
647123
Not Available
30
Gasket
127927
£1,04 Unit Price incl. VAT
31
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
32
Bracket
647825
£15,66 Unit Price incl. VAT
33
screw
030076
Not Available
34
Brake washer
598833
£3,05 Unit Price incl. VAT
35
screw
647799
£4,62 Unit Price incl. VAT
36
Plain washer 10,4x18x2
016626
Not Available
37
Hose clamp
573918
£1,00 Unit Price incl. VAT
37
Hose clamp
649378
£11,94 Unit Price incl. VAT
38
Screw w/ flange M6x16
434541
Not Available
39
Screw w/ flange M6x30
289731
Not Available
40
Plate
136916
£3,37 Unit Price incl. VAT
41
Spring
179013
£5,17 Unit Price incl. VAT
42
Spring plate M6
254485
£1,64 Unit Price incl. VAT
43
Brake pads couple Heng Tong
647078
£48,58 Unit Price incl. VAT
