Engine displacement
400
2
Model
X-EVO
3
Year
2009
4
Trim
X Evo Euro 3
5
Parts Catalog
Flywheel magneto cover - Oil filter
6
Parts Diagram
Parts Catalog
Supply system
by
Flywheel magneto cover - Oil filter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
Complete flywheel cover
8729175
Not Available
1
Complete flywheel cover
B0174635
£279,78 Unit Price incl. VAT
2
Flywheel housing cover gasket
872914
£19,68 Unit Price incl. VAT
2
Flywheel housing cover gasket
847649
£21,47 Unit Price incl. VAT
3
Plug M12x1,5
411311
Not Available
4
Breather pipe
829047
£7,51 Unit Price incl. VAT
5
O-ring
237553
£1,87 Unit Price incl. VAT
6
Screw M5x16
015715
Not Available
7
Reed valve support
82778R
£37,46 Unit Price incl. VAT
8
Valve tightening plate with U.P.
876060
£12,05 Unit Price incl. VAT
9
screw M5x10
433800
£0,86 Unit Price incl. VAT
10
Water outlet pipe
871795
£7,78 Unit Price incl. VAT
11
Oil pressure valve
829661
£11,54 Unit Price incl. VAT
12
Spring
829486
£1,72 Unit Price incl. VAT
13
Oil filter union
829122
£15,94 Unit Price incl. VAT
14
Timing plug assembly
8290405
£16,91 Unit Price incl. VAT
15
O-ring
479986
Not Available
16
Washer 10,5x17x1,5
AP9150472
£2,22 Unit Price incl. VAT
17
Oil pressure sensor
641541
Not Available
18
Water pump shaft assy.
872536
£101,35 Unit Price incl. VAT
19
Flat washer 22x12,1x1
274246
£1,00 Unit Price incl. VAT
20
Gasket ring
873934
Not Available
21
Gasket ring
82991R
£27,28 Unit Price incl. VAT
22
Water pump impeller cpl.
827929
Not Available
23
Oil plug rod
874707
£10,54 Unit Price incl. VAT
24
O-ring
479986
Not Available
25
Hose clamp
CM002901
£0,62 Unit Price incl. VAT
26
Oil filter
82960R
Not Available
27
Piping retainer clamp
849825
£7,81 Unit Price incl. VAT
28
Hose clamp
845978
£8,57 Unit Price incl. VAT
29
Spring
B017115
£9,78 Unit Price incl. VAT
30
screw M6x35
414838
£1,27 Unit Price incl. VAT
31
Screw w/ flange M6x25
B016774
£1,27 Unit Price incl. VAT
32
Screw m6x70
434429
£2,42 Unit Price incl. VAT
33
Screw w/ flange M6x50
B016775
£1,27 Unit Price incl. VAT
33
Screw
620068
Not Available
34
Oil filter
826033
£5,72 Unit Price incl. VAT
35
O-ring 20,35x1,78
288474
£0,52 Unit Price incl. VAT
36
O-ring 31,47x1,78
285536
£1,64 Unit Price incl. VAT
37
Oil filter plug
826165
£22,13 Unit Price incl. VAT

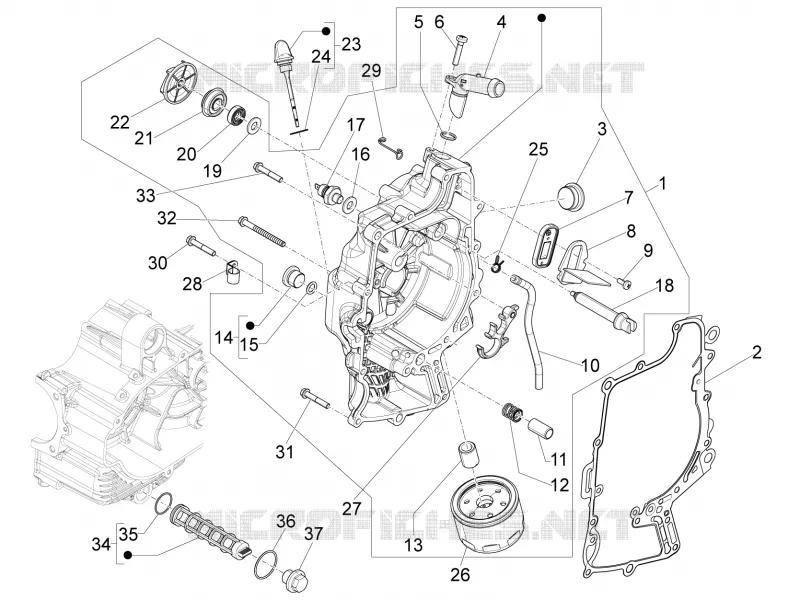

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
