1
Engine displacement
800
2
Model
GP
3
Year
2007
4
Trim
GP
5
Parts Catalog
Crankcase cover - Crankcase cooling
6
Parts Diagram
Parts Catalog
Rocking levers support unit
by
Flywheel magneto
Crankcase cover - Crankcase cooling
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Transmission cover with U.P.
8330455
£210,88 Unit Price incl. VAT
2
Radial ball bearing
841532
Not Available
3
Snap ring
006652
Not Available
4
Bearing 20x42x1
82656R
£11,81 Unit Price incl. VAT
5
Circlip
006642
Not Available
6
Pin 6,5x9,5x15
239388
Not Available
7
Flanged hexagonal-head screw
873098
Not Available
8
Connectors support bracket
640648
£13,81 Unit Price incl. VAT
9
Clamp support bracket
639537
£15,23 Unit Price incl. VAT
10
Spring
194945
£2,06 Unit Price incl. VAT
11
Cooling Cover
873495
£53,64 Unit Price incl. VAT
12
Screw M6x20
270361
Not Available
13
cooling cover gasket
832989
£16,87 Unit Price incl. VAT
14
Transmission housing air filter
873513
£29,87 Unit Price incl. VAT
15
BELE HOUSING COOLING CONVEYER
653333
Not Available
15
Belt cooling duct
654970
£21,61 Unit Price incl. VAT
16
Self-tap screw M3x20
258146
£0,65 Unit Price incl. VAT
17
Belt/transm. cooling conduit
873494
£57,48 Unit Price incl. VAT
18
Self tapping screw
297498
£0,60 Unit Price incl. VAT
19
Screw M6x20
270361
Not Available
20
SEAL RING (O-RING)
843938
Not Available
21
Mesh filter
873412
£19,86 Unit Price incl. VAT
22
screw TBC 3,6x12
018603
Not Available
23
Duct gasket
655314
Not Available
24
Cover
293717
£1,61 Unit Price incl. VAT

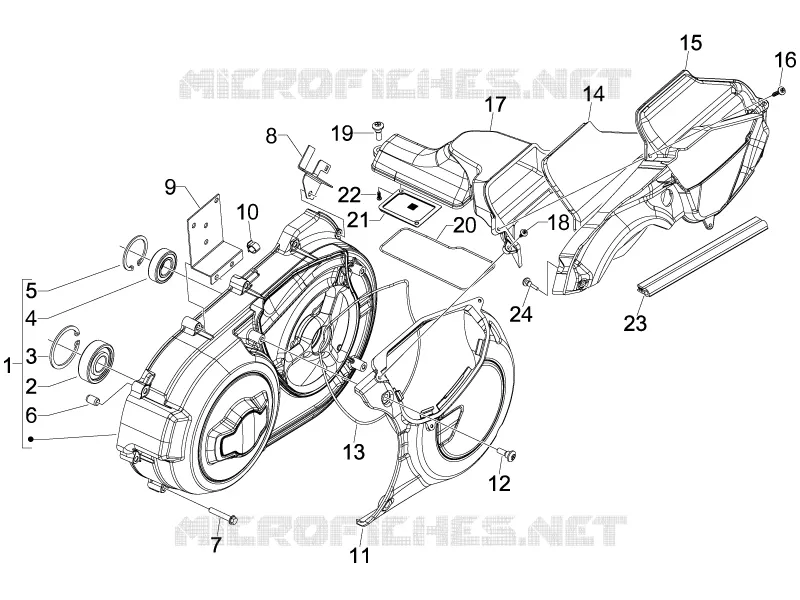

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
