1
Engine displacement
800
2
Model
GP
3
Year
2007
4
Trim
GP
5

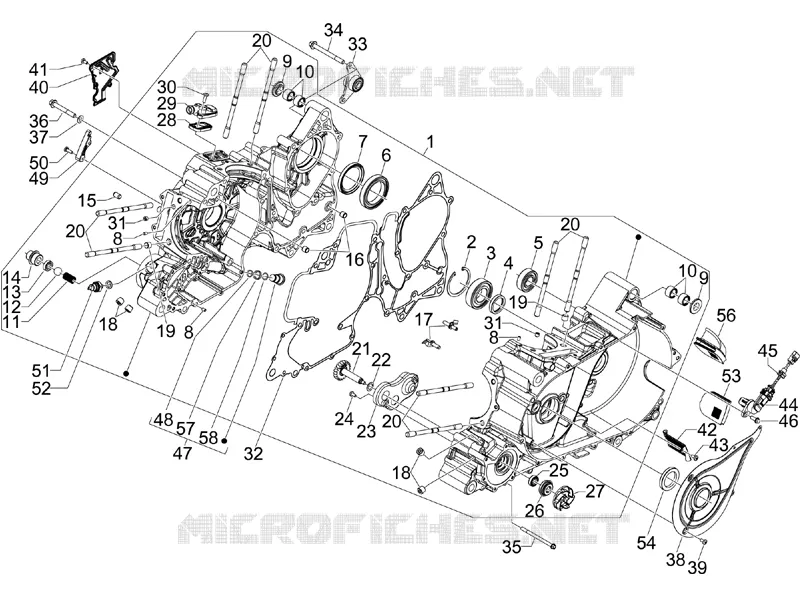

Parts Catalog
Crankcase
6
Parts Diagram
Parts Catalog
by
Oil pump
Crankcase
1
2
3
4
5
6
7
8
8
8
9
9
10
10
11
12
13
14
15
16
17
18
18
19
19
20
20
20
20
21
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
56
57
58
1
Crankcase assy Cat.1
8745855001
Not Available
1
Crankcase assy Cat.2
8745855002
Not Available
2
Snap ring
006662
Not Available
3
Bearing
847471
Not Available
3
Bearing
82926R
Not Available
4
Gasket ring
825023
£25,76 Unit Price incl. VAT
5
Radial ball bearing 20x47x14
833701
Not Available
6
Radial bearing 50x72x12
845439
Not Available
7
Gasket ring 50-68
845443
£23,68 Unit Price incl. VAT
8
Locating dowel
484993
£1,16 Unit Price incl. VAT
9
Bush
623857
£2,27 Unit Price incl. VAT
10
Roller cage
845684
£9,50 Unit Price incl. VAT
11
Valve spring
832983
£4,60 Unit Price incl. VAT
12
Ball
832980
£4,90 Unit Price incl. VAT
13
Oil anti-return valve
832984
£11,81 Unit Price incl. VAT
14
Oil filter union
832985
£17,98 Unit Price incl. VAT
15
Pin 6,5x9,5x15
239388
Not Available
16
Locating dowel Ø11x10
478115
Not Available
17
Nozzle
830666
£45,64 Unit Price incl. VAT
18
Plug M12x1,5
411311
Not Available
19
Pin 11,8X10
825597
£2,35 Unit Price incl. VAT
20
Stud bolt M10X1.25X166
877281
Not Available
20
Stud bolt M10X1.25X166
827951
Not Available
21
Water pump shaft assy.
872025
£119,30 Unit Price incl. VAT
22
Shim washer
974290
£1,21 Unit Price incl. VAT
23
Guard
834178
£11,81 Unit Price incl. VAT
24
Screw M5x10
018575
Not Available
25
Gasket ring
844439
Not Available
25
Gasket ring
873934
Not Available
26
Gasket ring
842595
Not Available
27
Impeller
833054
£36,74 Unit Price incl. VAT
28
Reed valve support
82778R
£37,46 Unit Price incl. VAT
28
Reeds bracket
825051
Not Available
29
Cover sas
827209
£21,44 Unit Price incl. VAT
30
screw
873102
£1,21 Unit Price incl. VAT
31
Nozzle
825649
£3,02 Unit Price incl. VAT
32
Half crankcase gasket mm 0,3
872625
£38,39 Unit Price incl. VAT
33
BRACKET WITH SILENTBLOC
872867
Not Available
33
Exhaust pipe support clamp
875518
£49,25 Unit Price incl. VAT
34
Screw w/ flange M6x90
874746
£1,52 Unit Price incl. VAT
35
Screw w/ flange M8x60
874747
£2,47 Unit Price incl. VAT
36
Screw w/ flange M8x85
874748
£2,98 Unit Price incl. VAT
37
Washer
106009
£0,96 Unit Price incl. VAT
38
Air deflector
832981
Not Available
39
Screw M5x10
018575
Not Available
40
Plate
843317
£12,97 Unit Price incl. VAT
41
Screw M5x10
018575
Not Available
42
Grid
834345
£10,26 Unit Price incl. VAT
43
Screw M5x10
018575
Not Available
44
Phase/revolution sensor
832963
Not Available
45
Joint.p.
584838
Not Available
46
Screw w/ flange M6x16
434541
Not Available
47
Oil unload plug
82929R
Not Available
47
Oil unload plug
833675
Not Available
48
O-ring
843186
£1,27 Unit Price incl. VAT
49
Chain guide plate
831335
£1,26 Unit Price incl. VAT
50
screw
873102
£1,21 Unit Price incl. VAT
51
Oil pressure sensor
82580R
Not Available
51
Oil pressure sensor
641541
Not Available
52
Washer 10.5X16X2.5
486075
£1,32 Unit Price incl. VAT
53
Air deflector
874451
£28,00 Unit Price incl. VAT
54
Gasket ring 35x50x7
832987
£15,22 Unit Price incl. VAT
55
Gasket
831393
£0,72 Unit Price incl. VAT
56
Fuel baffle
875442
£15,97 Unit Price incl. VAT
57
Gasket
831393
£0,72 Unit Price incl. VAT
58
O-Ring seal ring
825952
£0,79 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
