1
Engine displacement
300
2
Model
GTS
3
Year
2014
4
Trim
GTS ie ABS
5
Parts Catalog
Crankcase cover - Crankcase cooling
6
Parts Diagram
Parts Catalog
Central cover - Footrests
by
Cylinder-piston-wrist pin unit

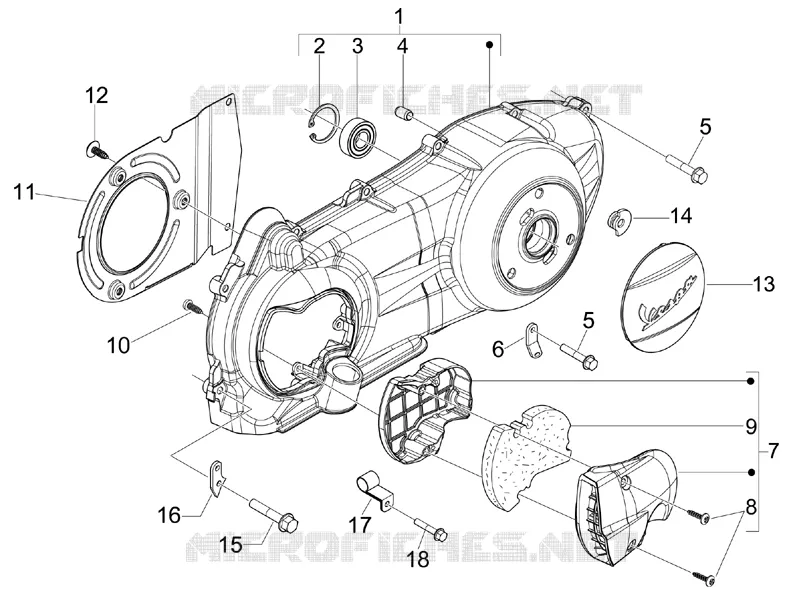

Crankcase cover - Crankcase cooling
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Transmission cover with U.P.
8714725
£281,05 Unit Price incl. VAT
2
Snap ring
006635
Not Available
3
Bearing
478985
Not Available
4
Pin 6,5x9,5x15
239388
Not Available
5
Screw w/ flange M6x30
B016792
£1,27 Unit Price incl. VAT
6
Hose clamp
844964
£1,99 Unit Price incl. VAT
7
Cooling Cover
842090
£19,67 Unit Price incl. VAT
8
Self-tap screw M3x20
258146
£0,65 Unit Price incl. VAT
9
Filtering element
842093
£3,12 Unit Price incl. VAT
10
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
11
Air deflector
834266
£20,56 Unit Price incl. VAT
12
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
13
"""Vespa"" transmission small cover"
CM155107
£27,34 Unit Price incl. VAT
14
Retainer buffer
871458
£1,72 Unit Price incl. VAT
15
Screw w/ flange M6x30
B016792
£1,27 Unit Price incl. VAT
16
Plate
872493
£3,24 Unit Price incl. VAT
17
Hose clamp
597418
£3,78 Unit Price incl. VAT
18
Screw w/ flange M6x30
B016792
£1,27 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
