Main cable harness for GTS ie ABS from 2014

Free shipping for all orders to United Kingdom over £150! See conditions.

Main cable harness

1

Frame harness

1D000414

£479,71 Unit Price incl. VAT

2

Fuse holder box

584211

£62,24 Unit Price incl. VAT

3

Fuse 15A

290860

£2,26 Unit Price incl. VAT

4

Fuse 7,5A

252945

£2,26 Unit Price incl. VAT

5

Fuse 30A

CM225730

£4,74 Unit Price incl. VAT

6

Hose clamp 2,7x132

640879

£5,14 Unit Price incl. VAT

7

Lock-strap L=180mm

145298

£1,14 Unit Price incl. VAT

8

Reed fuse 10A

292507

£2,26 Unit Price incl. VAT

9

Fuse 20A

580561

£4,96 Unit Price incl. VAT

10

Ground cable

584843

£13,84 Unit Price incl. VAT

11

Spring for connector

639560

£3,61 Unit Price incl. VAT

12

Pipes/cables retainer spring

CM006903

£3,58 Unit Price incl. VAT

13

Fusebox bracket

641532

£9,58 Unit Price incl. VAT

14

Cover

641547

£15,54 Unit Price incl. VAT

15

Non return spring

CM006902

£1,55 Unit Price incl. VAT

16

Non return spring l=27

CM006904

£2,32 Unit Price incl. VAT

16

Non return spring L=33

CM006906

£4,32 Unit Price incl. VAT

17

Guard

583282

£5,08 Unit Price incl. VAT

18

Lock-strap L=180mm

145298

£1,14 Unit Price incl. VAT

19

Lock-strap L=277

257134

£0,48 Unit Price incl. VAT

20

Plugs spring

641599

£3,08 Unit Price incl. VAT

21

Connector spring

584520

£13,22 Unit Price incl. VAT

22

Pipes/cables retainer spring

CM013202

£2,60 Unit Price incl. VAT

23

Guard

656656

£9,06 Unit Price incl. VAT

24

Plugs spring

1D000680

£3,97 Unit Price incl. VAT

25

Bracket

639843

£11,71 Unit Price incl. VAT

26

Tri/lobed hexagonal self-tapping screw

641204

£1,24 Unit Price incl. VAT

27

Spring washer 6,4x11,8x1

016406

Not Available

28

Flat washer 6,4x12x1

003056

Not Available

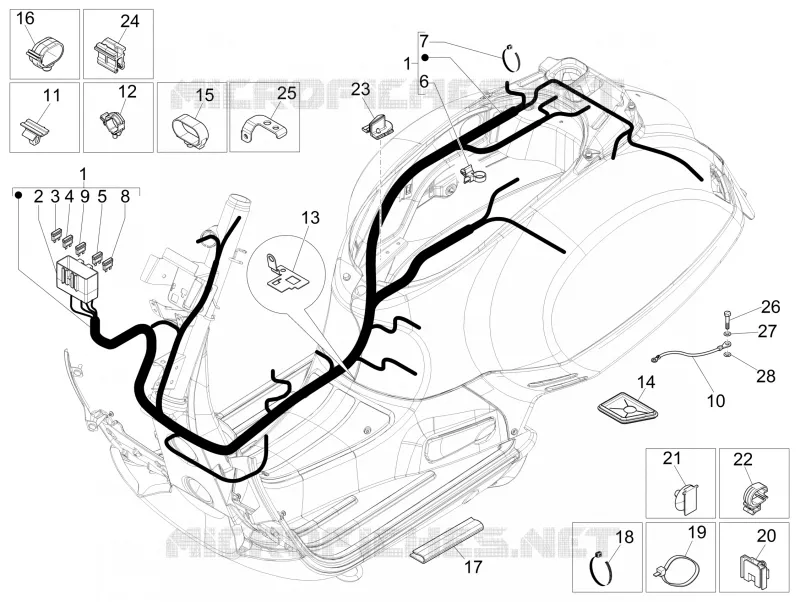

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
