1
Engine displacement
300
2
Model
GTS
3
Year
2014
4
Trim
GTS ie ABS
5
Parts Catalog

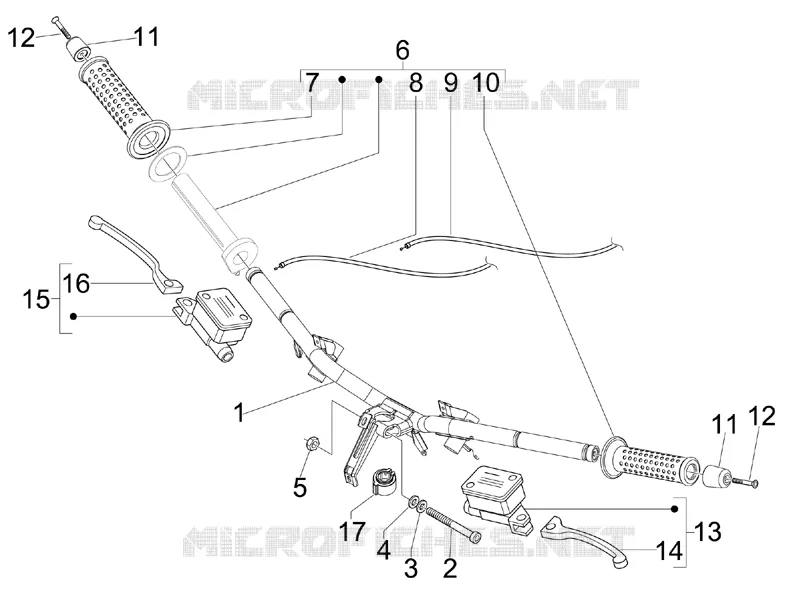

Handlebars - Master cil.
6
Parts Diagram
Parts Catalog
Flywheel magneto
by
Meter combination - Cruscotto
Handlebars - Master cil.
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
17
1
Handlebar with U.P.
1B001059
£176,52 Unit Price incl. VAT
2
Hex socket screw
668874
£3,35 Unit Price incl. VAT
3
Flat elastic washer with internal toothing 17x10,3x2
012543
Not Available
4
Flat washer
178790
£1,64 Unit Price incl. VAT
4
Flat washer 18x10,2x2,5
267917
£0,36 Unit Price incl. VAT
5
Nut M10
015330
Not Available
6
Throttle control sleeve assembly
CM079729
£119,90 Unit Price incl. VAT
7
Grip, r.h.
CM083802
£20,27 Unit Price incl. VAT
8
Throttle opening transmission
650639
£71,05 Unit Price incl. VAT
9
Throttle closing transmission
648076
£54,42 Unit Price incl. VAT
10
Grip, l.h.
CM083801
£20,27 Unit Price incl. VAT
11
Anti vib.weight trailing
673243
£22,13 Unit Price incl. VAT
12
screw M6x55
271434
Not Available
13
Rear master cylinder
CM074806
£111,13 Unit Price incl. VAT
14
Brake lever
497042
£12,32 Unit Price incl. VAT
15
Front brake hydraulic pump
CM074907
£87,85 Unit Price incl. VAT
16
Brake lever
497042
£12,32 Unit Price incl. VAT
17
Collar
582828
£2,11 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
