Main cable harness for S 4T 3V E3 ie from 2017

Free shipping for all orders to United Kingdom over £150! See conditions.

Main cable harness

1

Frame harness

1D000103

Not Available

1

Frame harness

680173

£555,02 Unit Price incl. VAT

2

Cap

583971

£14,27 Unit Price incl. VAT

3

Fuse holder

580653

£11,03 Unit Price incl. VAT

4

Fuse 7,5A

252945

£2,26 Unit Price incl. VAT

5

Fuse 15A

290860

£2,26 Unit Price incl. VAT

6

Reed fuse 10A

292507

£2,26 Unit Price incl. VAT

7

Hose clamp 2,7x132

640879

£5,14 Unit Price incl. VAT

8

Fuse 20A

580561

£4,96 Unit Price incl. VAT

9

Cap

581061

£7,70 Unit Price incl. VAT

10

Plug connect diagnos ECU

582928

£3,18 Unit Price incl. VAT

11

Cap

292577

£4,00 Unit Price incl. VAT

12

Fuse support bracket

642076

£15,10 Unit Price incl. VAT

13

Tri/lobed hexagonal self-tapping screw

641204

£1,24 Unit Price incl. VAT

14

Flat washer 6,4x12x1

003056

Not Available

15

Spring washer 6,4x11,8x1

016406

Not Available

16

Cable support bracket

643240

£7,81 Unit Price incl. VAT

17

Connector spring

584520

£13,22 Unit Price incl. VAT

18

Pipes/cables retainer spring

CM006903

£3,58 Unit Price incl. VAT

19

Non return spring L=23

CM006908

£4,60 Unit Price incl. VAT

20

Molletta

CM006910

£4,28 Unit Price incl. VAT

21

Non return spring

CM006912

£8,21 Unit Price incl. VAT

22

Spring for connector

639560

£3,61 Unit Price incl. VAT

23

Plugs spring

641599

£3,08 Unit Price incl. VAT

24

Spring for connector

641769

£5,36 Unit Price incl. VAT

25

Plate

641955

£7,64 Unit Price incl. VAT

26

Screw M5x16

015715

Not Available

27

Spring washer 8,5x5,1x1,5

016405

Not Available

28

Spring plate M5

248419

£2,00 Unit Price incl. VAT

29

Earth braid

581309

Not Available

30

Lock-strap L=180mm

145298

£1,14 Unit Price incl. VAT

31

Fairlead

294754

£4,34 Unit Price incl. VAT

32

Spring clamp

577594

£4,72 Unit Price incl. VAT

33

Pipes/cables retainer spring

CM013202

£2,60 Unit Price incl. VAT

33

Spring

CM013201

£0,76 Unit Price incl. VAT

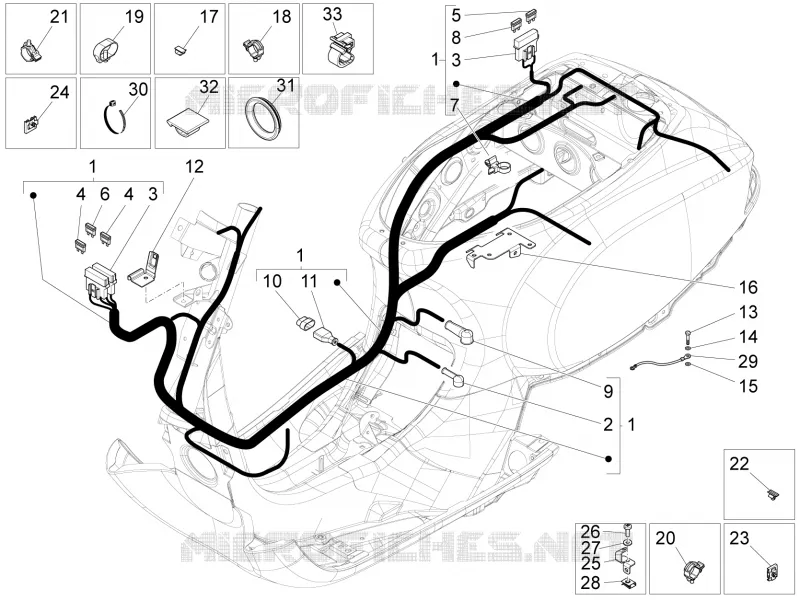

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
