Parts Catalog
Front headlamps - Turn signal lamps
6
Parts Diagram
Parts Catalog
Fuel tank
by
Rear suspension - Shock absorber/s
Front headlamps - Turn signal lamps
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
21
22
23
1
Headlight support clamp
654271
£14,78 Unit Price incl. VAT
2
Junction component
654276
£14,99 Unit Price incl. VAT
3
Complete headlight support
65489045
Not Available
4
Headlight spacer
654301
£1,54 Unit Price incl. VAT
5
Gasket
654876
£30,91 Unit Price incl. VAT
6
Reflector, assy.
640725
£120,43 Unit Price incl. VAT
6
Reflector, assy.
1D000450
£178,40 Unit Price incl. VAT
7
Lamp HS1 35+35W 12V
231215
£21,42 Unit Price incl. VAT
8
Headlight cable assembly
642002
£6,49 Unit Price incl. VAT
9
12V-5W bulb
2920225
£2,70 Unit Price incl. VAT
10
Adjuster block
640800
£4,61 Unit Price incl. VAT
11
Adjusting pin
640801
£12,74 Unit Price incl. VAT
12
TBCIC Screw M5x12
015935
Not Available
13
screw M6x16
018631
Not Available
14
Washer 5.3x10x10
006965
Not Available
15
Spring washer 12x6,4x0,5
006976
Not Available
16
Front left turn indicator
641912
£25,73 Unit Price incl. VAT
17
Bulb 12v 10w
680234
Not Available
18
Front right turn indicator
641911
£25,73 Unit Price incl. VAT
19
Bulb 12v 10w
680234
Not Available
20
Self-tap screw M4,2x19
008457
Not Available
21
Plate
CM017406
£0,95 Unit Price incl. VAT
22
Headlight frame
654265
£47,88 Unit Price incl. VAT
23
TBCIC Screw
270793
£0,52 Unit Price incl. VAT

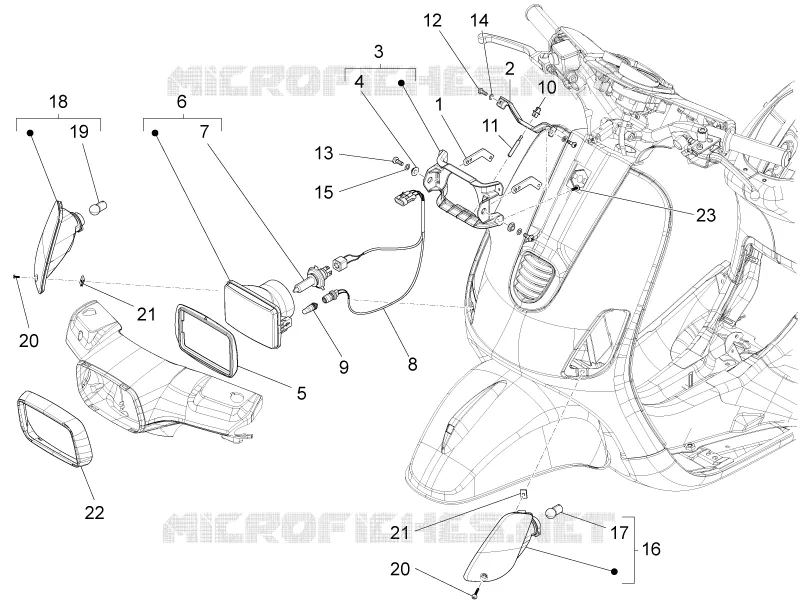

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
