Engine displacement
125
2
Model
S
3
Year
2017
4
Trim
S 4T 3V E3 ie
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Flywheel magneto cover - Oil filter
by
Crankcase cover - Crankcase cooling
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
1
Steering tube complete with arm
6501315
£311,69 Unit Price incl. VAT
2
Piston pin
177451
£22,88 Unit Price incl. VAT
3
Roller cage
198513
£15,49 Unit Price incl. VAT
4
Gasket
006731
Not Available
5
Gasket ring
119219
£1,58 Unit Price incl. VAT
6
Suspension arm with I.P.
6514825
Not Available
7
Front shock absorber
665766
£62,34 Unit Price incl. VAT
8
Pad
174085
£2,87 Unit Price incl. VAT
9
Pad
174874
£3,66 Unit Price incl. VAT
10
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
11
Nut
021210
Not Available
12
Washer
174088
£1,62 Unit Price incl. VAT
13
Washer
012535
Not Available
14
Spring washer
709047
£0,70 Unit Price incl. VAT
15
Shock absorber connection bracket
601556
£31,18 Unit Price incl. VAT
16
screw
031120
Not Available
17
Nut M8x6,5
020108
Not Available
18
Spring washer 13,75x8,15x4,5
016408
Not Available
19
Not available
5602865
£182,66 Unit Price incl. VAT
20
Drawn cap
177436
Not Available
21
Ring
177494
£4,73 Unit Price incl. VAT
22
Front wheel hub
560284
Not Available
23
Ring gear counts Km socket
267818
£33,11 Unit Price incl. VAT
24
Brake disc
56395R
£61,37 Unit Price incl. VAT
25
Roller cage
177442
£7,33 Unit Price incl. VAT
26
Gasket ring
177443
£3,55 Unit Price incl. VAT
27
Bearing
177610
£20,51 Unit Price incl. VAT
28
Hex socket screw M6x20
271147
Not Available
28
Hex socket screw M6x20
667152
£1,27 Unit Price incl. VAT
29
Snap ring
006635
Not Available
30
Cap
177609
£3,76 Unit Price incl. VAT
31
Nut
021114
Not Available
32
Split pin
012789
Not Available
33
Lower steering bearing
650075
Not Available
34
Spring plate M6
254485
£1,64 Unit Price incl. VAT
35
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
36
Suspension cover
654268
£12,49 Unit Price incl. VAT
37
Pinion
267819
£3,60 Unit Price incl. VAT
38
Upper thrust ring
65069345
£19,51 Unit Price incl. VAT
39
Axle plug
665657
£3,40 Unit Price incl. VAT
40
Front suspension arm cover
561433
Not Available
41
Ring
177521
£1,62 Unit Price incl. VAT
42
Washer of the steering
0037514
Not Available
43
Steering tube ring nut
0111094
Not Available
44
O-ring
177408
£1,33 Unit Price incl. VAT
45
Washer
177445
£1,62 Unit Price incl. VAT
46
Circlip
006422
Not Available
47
Washer
177414
£1,62 Unit Price incl. VAT
48
Brake pipe support bracket
665701
£13,09 Unit Price incl. VAT
49
Bearing protection hood
665735
Not Available
50
Guard washer
1C001628
Not Available

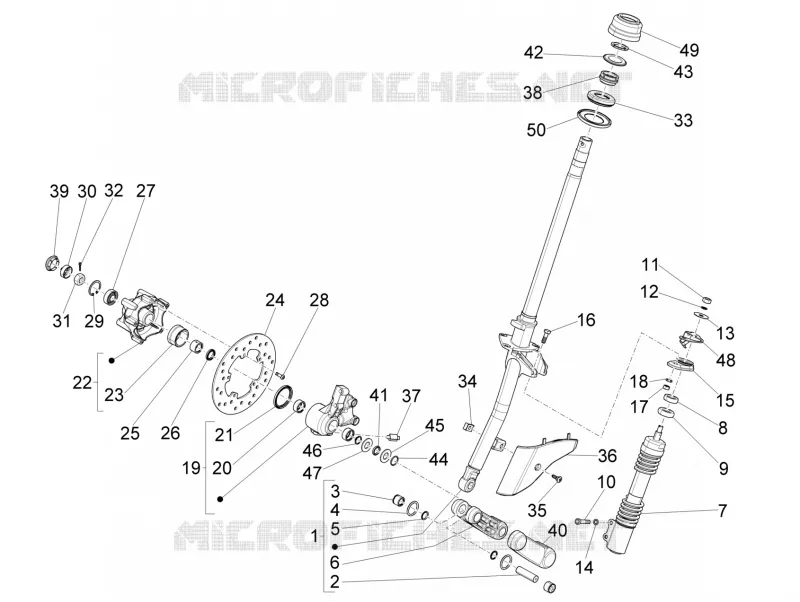

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
