1
Engine displacement
125
2
Model
HEXAGON
3
Year
0
4
Trim
Hexagon
5
Parts Catalog
Footrest-Tanks door
6
Parts Diagram
Parts Catalog
Rear shield
by
Crankcase
Footrest-Tanks door
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Float chamber
296883
Not Available
2
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
3
Funnel
296884
Not Available
4
Frame
296861
Not Available
5
Gasket
270141
Not Available
6
Spring plate
184142
Not Available
7
Metric screw M6x20
259830
Not Available
8
Washer
179575
£1,33 Unit Price incl. VAT
9
Footrest
9283565
Not Available
9
Footrest
9283875
Not Available
9
Footrest
9283005
Not Available
9
Footrest
9283895
Not Available
9
Footrest
9283905
Not Available
9
Footrest
9283865
Not Available
9
Footrest
9283775
Not Available
9
Footrest
9283675
Not Available
9
Footrest
9283935
Not Available
9
Footrest
9283885
Not Available
9
Footrest
9283765
Not Available
9
Footrest
9283665
Not Available
9
Footrest
9283045
Not Available
9
Footrest
9283945
Not Available
9
Footrest
9283785
Not Available
9
Footrest
9283955
Not Available
10
Spring plate M6
254485
£1,64 Unit Price incl. VAT
11
Flap
296877
Not Available
12
Circlip
005962
Not Available
13
Pin
297495
Not Available
14
Support
2968854
Not Available
15
Self tapping screw
297498
£0,60 Unit Price incl. VAT
16
Spring
297496
£3,80 Unit Price incl. VAT
16
Spring
297494
Not Available

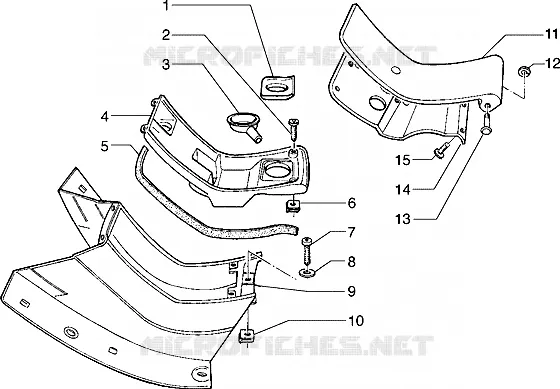

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
