1
Engine displacement
125
2
Model
HEXAGON
3
Year
0
4
Trim
Hexagon
5
Parts Catalog
Radiator
6
Parts Diagram
Parts Catalog
Expansion tank
by
Conveyor

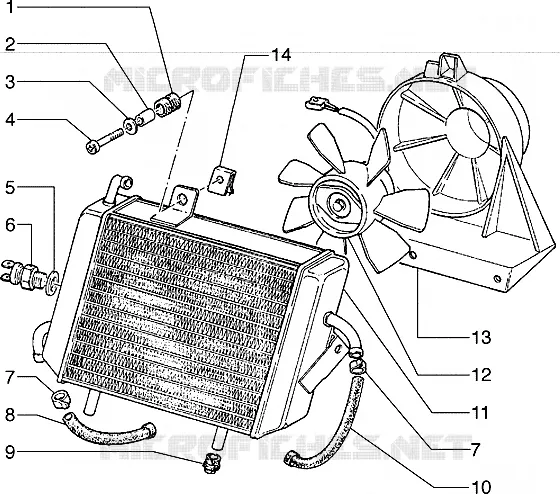

Radiator
1
2
3
4
5
6
7
7
8
9
10
11
11
12
13
14
1
Upper rubber
351782
£2,02 Unit Price incl. VAT
2
Spacer
273288
£1,87 Unit Price incl. VAT
3
Washer d6,2x20x1
013092
Not Available
4
Screw m6x30
271891
£1,28 Unit Price incl. VAT
5
Copper gasket
168077
£4,86 Unit Price incl. VAT
6
Thermal switch
293301
£23,72 Unit Price incl. VAT
7
Hose clamp
577557
Not Available
8
pipe
270248
Not Available
9
Pad
270239
Not Available
10
pipe
297162
Not Available
11
Water cooler
270246
Not Available
12
Electric fan
581098
Not Available
13
Maintenance
270238
Not Available
14
Spring plate M6
254485
£1,64 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
