Parts Catalog

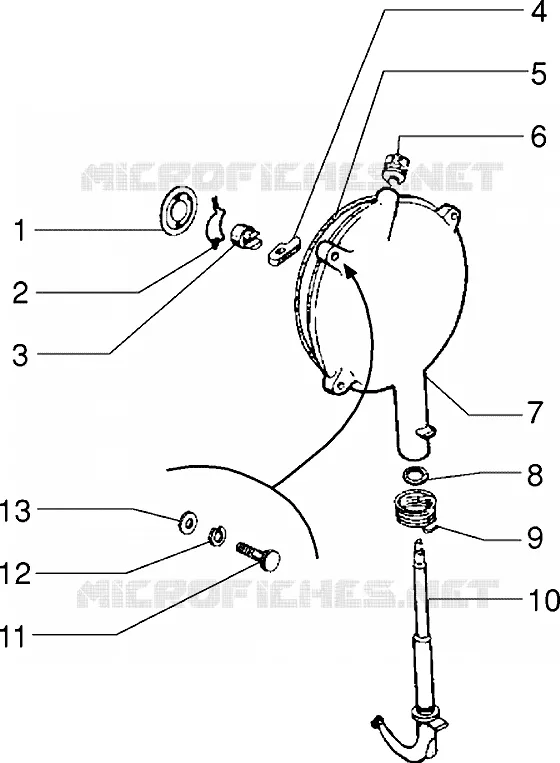

Clutch cover
6
Parts Diagram
Parts Catalog
Electrical devices
by
Clutch
Clutch cover
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Disc
215809
£12,92 Unit Price incl. VAT
2
Ring
014457
Not Available
3
Pin
0898582
Not Available
4
Lever
083806
Not Available
5
Grommet OR for clutch cover
017781
Not Available
6
Breather
0193014
Not Available
7
Clutch cover
1139954
Not Available
8
Gasket
006708
Not Available
9
Spring
046740
Not Available
10
Lever
0979844
Not Available
11
screw M6x25
031092
Not Available
12
Spring washer 6,4x11,8x1
016406
Not Available
13
Flat washer 6,4x12x1
003056
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
