1
Engine displacement
200
2
Model
PX
3
Year
0
4
Trim
PX 200 E
5
Parts Catalog

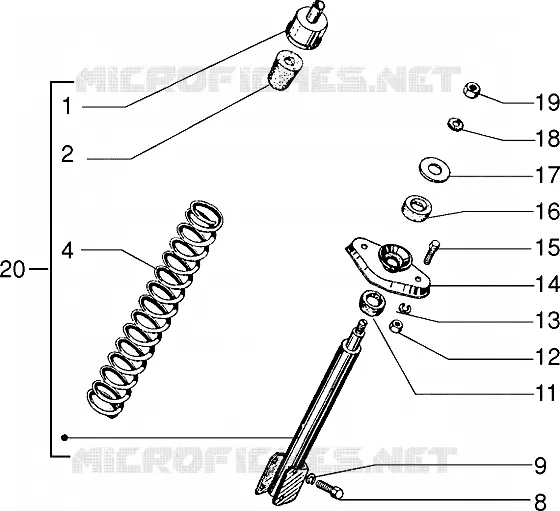

Front shock absorber
6
Parts Diagram
Parts Catalog
Steering column
by
Cooling-hood-main bearings
Front shock absorber
1
2
4
8
9
11
12
13
14
15
16
17
18
19
20
1
Disc
1740844
Not Available
2
Pad
228256
Not Available
4
Spring
196304
Not Available
8
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
9
Spring washer
709047
£0,70 Unit Price incl. VAT
11
Pad
174085
£2,87 Unit Price incl. VAT
12
Nut M8x6,5
020108
Not Available
13
Spring washer 13,75x8,15x4,5
016408
Not Available
14
plate
174806
£17,52 Unit Price incl. VAT
15
Hex screw M8x22
031119
Not Available
16
Pad
174085
£2,87 Unit Price incl. VAT
17
Washer
174088
£1,62 Unit Price incl. VAT
18
Washer
012535
Not Available
19
Nut
021210
Not Available
20
Front shock absorber
563803
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
