Parts Catalog
Saddle
6
Parts Diagram
Parts Catalog
Stand
by
Crankcase fasteners
Saddle
1
2
4
5
6
7
8
9
10
11
12
13
14
15
18
19
20
21
22
23
24
25
26
27
1
Saddle
CM001701
Not Available
1
Saddle
CM001702
Not Available
1
Saddle
CM010601000N
Not Available
1
Saddle
CM001704
Not Available
1
Saddle assembly
CM0106020061
Not Available
1
Saddle
CM001703
Not Available
1
Saddle
CM0106010054
Not Available
1
Saddle
CM0106020054
Not Available
2
Handle
219877
Not Available
2
Handle
219179
Not Available
4
Chromium-plated lock
577267
£66,78 Unit Price incl. VAT
5
Cylinder set
179292
Not Available
6
Key blank
257710
£11,93 Unit Price incl. VAT
7
plate
178898
£1,14 Unit Price incl. VAT
8
Flat washer 4,2x7,6x0,9
016404
Not Available
9
screw
031027
Not Available
10
Front hook
219857
£12,42 Unit Price incl. VAT
11
Cup
240166
£9,14 Unit Price incl. VAT
12
Flat washer 15x8,4x1,5
003058
Not Available
13
Notched washer 14x8,3x1,8
012540
Not Available
14
Pin
240165
£10,68 Unit Price incl. VAT
15
Pad
267420
£2,42 Unit Price incl. VAT
18
Pad
267420
£2,42 Unit Price incl. VAT
19
Flat washer 15x8,4x1,5
003058
Not Available
20
Spring washer 13,75x8,15x4,5
016408
Not Available
21
Hex screw M8x22
031119
Not Available
22
screw
010022
Not Available
23
Hook for bag
227153
£12,28 Unit Price incl. VAT
24
plate
057371
Not Available
25
Spring washer 8,5x5,1x1,5
016405
Not Available
26
Nut
020105
Not Available
27
screw
219417
£0,62 Unit Price incl. VAT

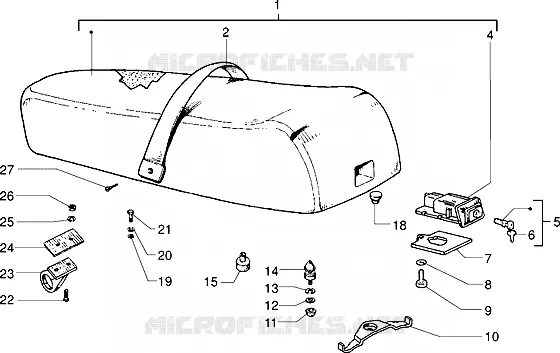

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
