Engine displacement
150
2
Model
946
3
Year
2015
4
Trim
946 ARMANI 150 4T 3V ABS E3
5
Parts Catalog
Throttle body - Injector - Union pipe
6

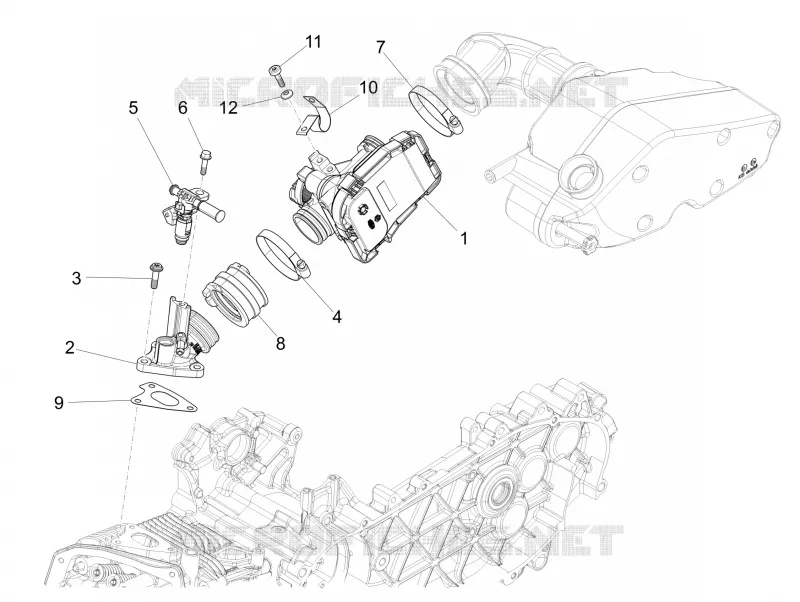

Parts Diagram
Parts Catalog
Rear wheel
by
Cylinder head cover
Throttle body - Injector - Union pipe
1
2
3
4
5
6
7
8
9
10
11
12
1
Throttle body with E.C.U. HW308
CM084918
£570,60 Unit Price incl. VAT
2
Induction joint with I.P.
1A001358
£23,36 Unit Price incl. VAT
2
Union pipe
880843
Not Available
3
screw M6x22
828152
Not Available
4
Hose clamp
709532
Not Available
5
Injector complete with connection
8799715
£184,85 Unit Price incl. VAT
6
Screw w/ flange
1A003001
£2,90 Unit Price incl. VAT
7
Hose clamp
614188
£4,90 Unit Price incl. VAT
8
Throttle body hose
1A003984
£9,41 Unit Price incl. VAT
9
Gasket
B015678
Not Available
10
Metallic clamp
642044
£2,45 Unit Price incl. VAT
11
Screw M5x15
873653
£5,14 Unit Price incl. VAT
12
Washer
012528
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
