Engine displacement
150
2
Model
946
3
Year
2015
4
Trim
946 ARMANI 150 4T 3V ABS E3
5
Parts Catalog
Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Front shield
by
Frame/bodywork
Rear suspension - Shock absorber/s
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Complete rear shock absorber
668599
£248,64 Unit Price incl. VAT
2
Shock absorber connection bracket
668934
£30,52 Unit Price incl. VAT
3
Upper buffer
178150
£2,69 Unit Price incl. VAT
4
Flat washer
267038
£1,02 Unit Price incl. VAT
5
Spring washer 13,75x8,15x4,5
016408
Not Available
6
Nut M8
021108
Not Available
7
screw
319532
£1,43 Unit Price incl. VAT
8
Spring washer
709047
£0,70 Unit Price incl. VAT
9
Gear cpl.
668614
£425,45 Unit Price incl. VAT
10
Pin
668662
£66,46 Unit Price incl. VAT
11
Self locking nut
267555
£0,47 Unit Price incl. VAT
12
Torx Screw
1C000225
£19,91 Unit Price incl. VAT
13
Ring
006409
Not Available
14
Swinging unit coupling complete strut
668656
£42,74 Unit Price incl. VAT
15
Torx Screw
669304
£3,17 Unit Price incl. VAT
16
Self locking nut M10
002440
Not Available
17
Left strut fixing bracket
1C000259
£24,43 Unit Price incl. VAT
18
Torx Screw
669305
£4,19 Unit Price incl. VAT
19
Self locking nut M10
002440
Not Available
20
Hex socket screw M8x55
872997
£12,94 Unit Price incl. VAT
21
Nut M8
020008
Not Available

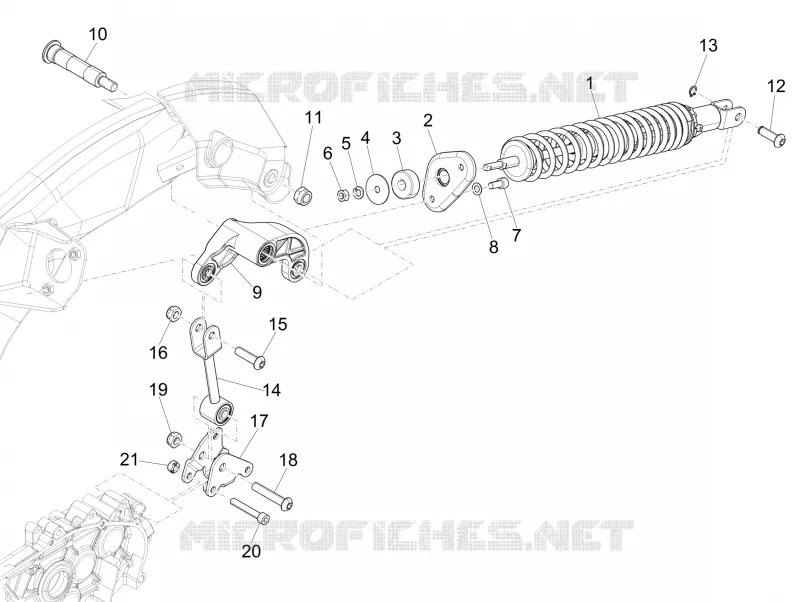

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
