Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Front wheel
by
Central cover - Footrests
Fork/steering tube - Steering bearing unit
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
1
Arm complete steering tube
6692345
£853,00 Unit Price incl. VAT
2
Left suspension arm
6483975
£98,51 Unit Price incl. VAT
3
Roller cage
198513
£15,49 Unit Price incl. VAT
4
Gasket
006731
Not Available
5
Gasket ring
119219
£1,58 Unit Price incl. VAT
6
Piston pin
177451
£22,88 Unit Price incl. VAT
7
Collar
1B000044
£6,42 Unit Price incl. VAT
8
Steering tube ring nut
0111094
Not Available
9
Washer of the steering
0037514
Not Available
10
Upper thrust ring
650693
Not Available
11
Lower steering bearing
650075
Not Available
12
Front suspension cover
676187
£20,41 Unit Price incl. VAT
13
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
14
Washer
012528
Not Available
15
Spring plate
CM017410
£0,71 Unit Price incl. VAT
16
Spring plate M5
248419
£2,00 Unit Price incl. VAT
17
Screw
831153
£0,16 Unit Price incl. VAT
18
screw
597150
£1,51 Unit Price incl. VAT
19
Spring washer 13,75x8,15x4,5
016408
Not Available
20
Shock absorber connection bracket
601556
£31,18 Unit Price incl. VAT
21
Plate cpl.
1C000166
£18,00 Unit Price incl. VAT
22
Pad
174874
£3,66 Unit Price incl. VAT
23
Pad
174085
£2,87 Unit Price incl. VAT
24
Washer
012535
Not Available
25
Washer
174088
£1,62 Unit Price incl. VAT
26
Nut
021210
Not Available
27
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
28
Spring washer
709047
£0,70 Unit Price incl. VAT
29
Front suspension arm cover
1C0017785
£144,59 Unit Price incl. VAT
30
ABS sensor
1D0001275
Not Available
31
Torx Screw
880285
£1,24 Unit Price incl. VAT
32
O-ring
177408
£1,33 Unit Price incl. VAT
33
Washer
177445
£1,62 Unit Price incl. VAT
34
Pin and shock absorber support
6691915
£284,64 Unit Price incl. VAT
35
Drawn cap
177436
Not Available
36
Ring
177494
£4,73 Unit Price incl. VAT
37
Ring
177521
£1,62 Unit Price incl. VAT
38
Ring
006425
Not Available
39
Washer
177414
£1,62 Unit Price incl. VAT
40
Gasket ring
177443
£3,55 Unit Price incl. VAT
41
Front ABS tone wheel
669115
£10,22 Unit Price incl. VAT
42
Brake disc
669188
£136,48 Unit Price incl. VAT
43
Hex socket screw M6x20
667152
£1,27 Unit Price incl. VAT
44
Roller cage
177442
£7,33 Unit Price incl. VAT
45
Rear wheel hub with U.P.
650907
£131,96 Unit Price incl. VAT
46
Bearing
177610
£20,51 Unit Price incl. VAT
47
Snap ring
006635
Not Available
48
Nut
021114
Not Available
49
Cap
177609
£3,76 Unit Price incl. VAT
50
Split pin
012789
Not Available
51
Complete front shock absorber
1C000133
£239,81 Unit Price incl. VAT
52
Hose clamp
1C000088
£12,97 Unit Price incl. VAT
53
Fairlead
230636
£3,90 Unit Price incl. VAT

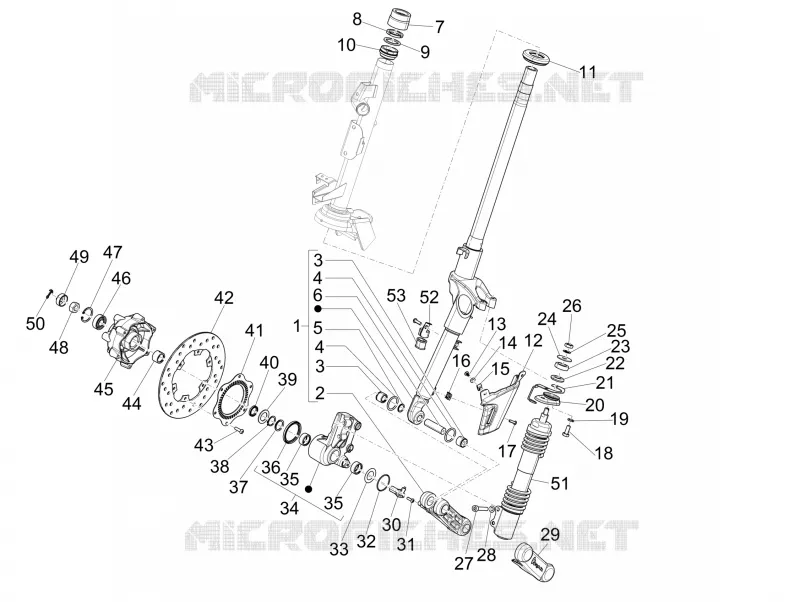

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
