1
Engine displacement
300
2
Model
BEVERLY
3
Year
2019
4
Trim
Beverly 300 ie ABS Euro 4
5
Parts Catalog

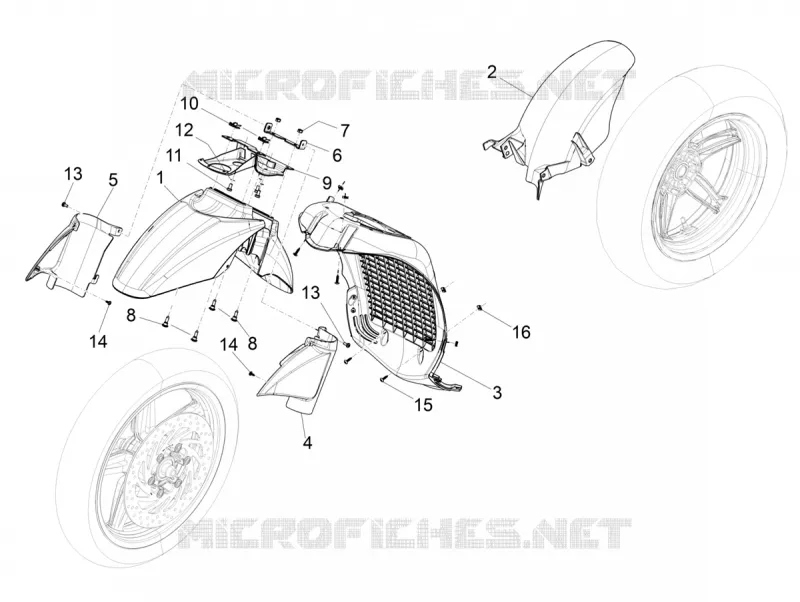

Wheel huosing - Mudguard
6
Parts Diagram
Parts Catalog
Side cover - Spoiler
by
Front glove-box - Knee-guard panel
Wheel huosing - Mudguard
1
2
3
4
5
6
7
8
8
9
10
11
12
13
13
14
14
15
16
1
Garde-boue Av.
66719700D14
Not Available
1
Front mudguard
66719700XV7
£360,83 Unit Price incl. VAT
1
Front mudguard
66719700Q4
£360,83 Unit Price incl. VAT
1
Front mudguard
66719700H4
Not Available
1
Front mudguard
667197
£260,36 Unit Price incl. VAT
1
Garde-boue Av.
66719700XE8
£360,83 Unit Price incl. VAT
1
Garde-boue avant
66719700DJ
£360,83 Unit Price incl. VAT
2
Garde-boue Ar.
1B006836
Not Available
3
Wheel compartment
672954000C
£61,86 Unit Price incl. VAT
4
Fourreau G
1B004274000H4
£92,84 Unit Price incl. VAT
4
Fourreau G
1B004274000XE8
£92,84 Unit Price incl. VAT
5
Fourreau D
1B004275000H4
£92,84 Unit Price incl. VAT
5
Fourreau D
1B004275000XE8
£92,84 Unit Price incl. VAT
6
Sliders support bracket
598642
£12,52 Unit Price incl. VAT
7
Self locking nut M6
195482
£1,27 Unit Price incl. VAT
8
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
9
Support clamp
667085
£43,09 Unit Price incl. VAT
10
Spring plate M6
254485
£1,64 Unit Price incl. VAT
11
Screw m6x12
031086
Not Available
12
Spring washer 6,4x11x0,5
006966
Not Available
13
Self tapping screw
297498
£0,60 Unit Price incl. VAT
14
Self-tapping screw M5x12
015585
Not Available
15
Self-tap screw
CM178604
£1,24 Unit Price incl. VAT
16
Spring plate
CM017410
£0,71 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
