1
Engine displacement
300
2
Model
BEVERLY
3
Year
2019
4
Trim
Beverly 300 ie ABS Euro 4
5
Parts Catalog

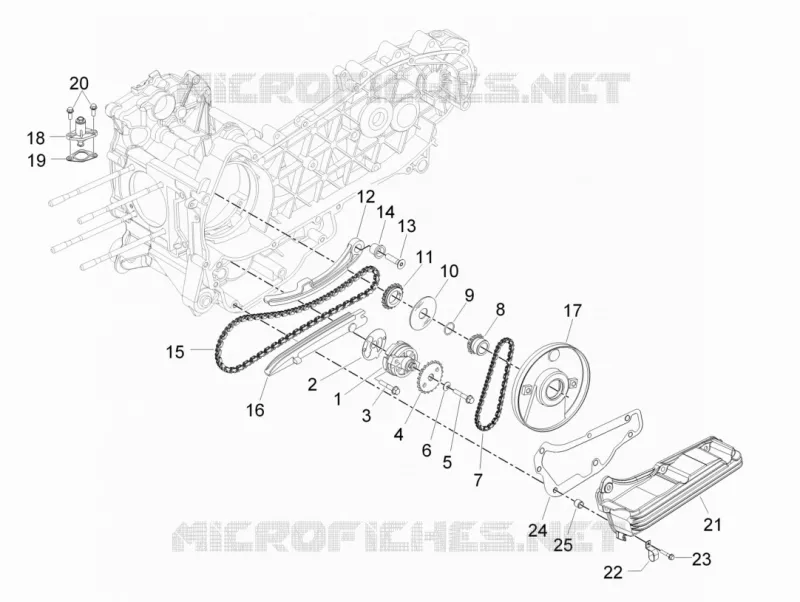

Oil pump
6
Parts Diagram
Parts Catalog
Fork's components (Mingxing)
by
Head - valves
Oil pump
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
Oil pump assembly
82948R
£130,91 Unit Price incl. VAT
2
Carter-oil pump gasket
847929
£1,19 Unit Price incl. VAT
3
Screw w/ flange M5x35
829593
£1,27 Unit Price incl. VAT
4
Oil pump gear
287913
£8,52 Unit Price incl. VAT
5
Screw w/ flange M6x14
B016426
£1,27 Unit Price incl. VAT
6
Belleville spring Ø6,4xØ20x2
436695
£2,09 Unit Price incl. VAT
7
Camshaft chain
82723R
£59,88 Unit Price incl. VAT
8
Oil pump control pinion
82783R
£22,50 Unit Price incl. VAT
9
O-Ring seal ring
825952
£0,79 Unit Price incl. VAT
10
Oil seal washer
483918
£1,27 Unit Price incl. VAT
11
Timing chain pinion
82782R
£22,31 Unit Price incl. VAT
12
Chain tensioner rod
840344
£11,44 Unit Price incl. VAT
13
Screw w/ flange M6x25
B016774
£1,27 Unit Price incl. VAT
14
Chain tensioner rod spacer
485868
Not Available
15
Oil pump chain
82649R
£15,60 Unit Price incl. VAT
16
Chain tensioner sliding block
847516
£14,69 Unit Price incl. VAT
17
Timing system cover
847116
£59,46 Unit Price incl. VAT
18
Chain tensioner bracket
289919
Not Available
19
Guarnizione cilindro/tendicatena
847928
£3,24 Unit Price incl. VAT
20
Screw w/ flange M6x16
B016777
£1,27 Unit Price incl. VAT
21
Pan oil
875908
Not Available
22
Hose clamp
564629
£3,49 Unit Price incl. VAT
23
Screw w/ flange M6x30
B016792
£1,27 Unit Price incl. VAT
24
Gasket
846098
£6,12 Unit Price incl. VAT
25
Locating dowel Ø7,5x12
277916
£6,38 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
