1
Engine displacement
300
2
Model
BEVERLY
3
Year
2019
4
Trim
Beverly 300 ie ABS Euro 4
5
Parts Catalog

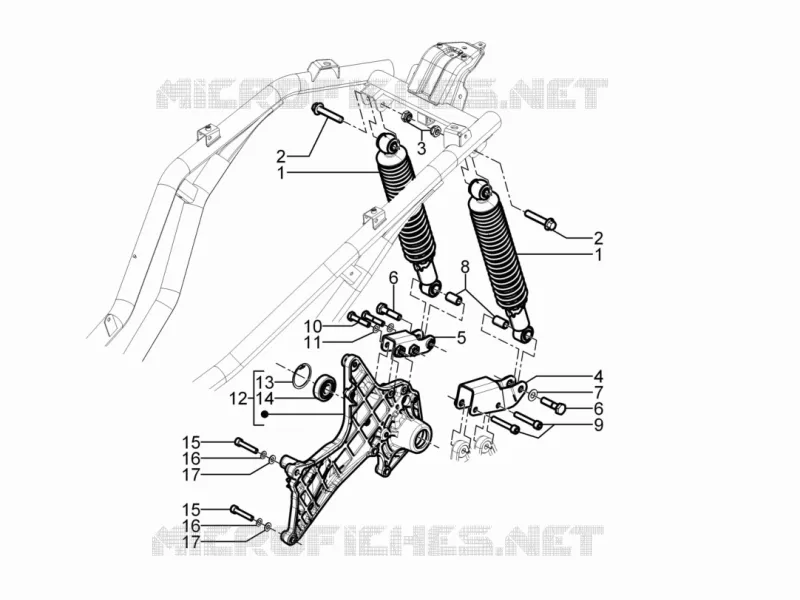

Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Cdi magneto assy
by
Air filter
Rear suspension - Shock absorber/s
1
1
2
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
15
16
16
17
17
1
Complete rear shock absorber
58518R5
£120,50 Unit Price incl. VAT
2
Screw w/ flange M10
268158
£1,87 Unit Price incl. VAT
3
Self locking nut M10
002440
Not Available
4
Left rear shock absorber connection bracket
667595
£39,83 Unit Price incl. VAT
5
Right rear shock absorber connection bracket
667597
£39,83 Unit Price incl. VAT
6
screw M10x40
030097
Not Available
7
Washer
012535
Not Available
8
Shock absorber bush
AP8161031
£3,91 Unit Price incl. VAT
9
Hex socket screw M8x50
844483
£0,65 Unit Price incl. VAT
10
screw
030074
Not Available
11
Spring washer
709047
£0,70 Unit Price incl. VAT
12
Bras de suspension droit complet
1A012991
£271,02 Unit Price incl. VAT
13
Circlip
006647
Not Available
14
Ball bearing
82545R
£22,90 Unit Price incl. VAT
15
Hex socket screw
826298
£1,20 Unit Price incl. VAT
16
Spring washer
709047
£0,70 Unit Price incl. VAT
17
Flat washer 15x8,4x1,5
003058
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
