1
Engine displacement
125
2
Model
X10
3
Year
2014
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Transmissions
by
Plates - Emblems
Cooling system
1
2
3
4
5
6
6
7
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
21
21
22
23
24
24
25
25
26
27
28
29
30
31
1
Water cooler
657239
£117,47 Unit Price incl. VAT
2
Radiator grill closure
674246
£16,73 Unit Price incl. VAT
3
Screw metrica
CM179303
£1,27 Unit Price incl. VAT
4
Self locking nut M6
241936
£0,74 Unit Price incl. VAT
5
Electric fan
58170R
Not Available
6
screw M6x25
CM179305
£1,24 Unit Price incl. VAT
7
Spring plate M6
254485
£1,64 Unit Price incl. VAT
8
Lower rubber
258904
£1,54 Unit Price incl. VAT
9
screw M6x25
CM179305
£1,24 Unit Price incl. VAT
10
Washer d6,2x20x1
013092
Not Available
11
Upper rubber
351782
£2,02 Unit Price incl. VAT
12
Spacer
273288
£1,87 Unit Price incl. VAT
13
Spring plate M6
254485
£1,64 Unit Price incl. VAT
14
Coolant tank
674030
£65,62 Unit Price incl. VAT
15
Expansion tank plug
623673
£17,92 Unit Price incl. VAT
16
Spring plate M6
254485
£1,64 Unit Price incl. VAT
17
Self tapping screw 4,2x16
CM178606
£9,08 Unit Price incl. VAT
18
Water rad.feed pipe
CM007020
£20,70 Unit Price incl. VAT
19
Radiator return pipe
CM007019
£33,91 Unit Price incl. VAT
20
Hose clamp
CM001904
£1,51 Unit Price incl. VAT
21
Hose clamp
CM001902
Not Available
22
Pump-radiator pipe fitting
674812
£150,30 Unit Price incl. VAT
23
Radiator-head pipe fitting link
674813
£103,66 Unit Price incl. VAT
24
Hose clamp
CM001909
£1,88 Unit Price incl. VAT
25
Hose clamp
AP8104097
£3,42 Unit Price incl. VAT
25
Hose clamp
675874
Not Available
26
Elastic spring
672491
£1,18 Unit Price incl. VAT
27
Non return spring
CM006914
£2,72 Unit Price incl. VAT
28
Fan shroud
672464
£15,47 Unit Price incl. VAT
29
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
30
Fuel tank gasket
620737
£2,17 Unit Price incl. VAT
31
Non return spring L=33
CM006906
£4,32 Unit Price incl. VAT

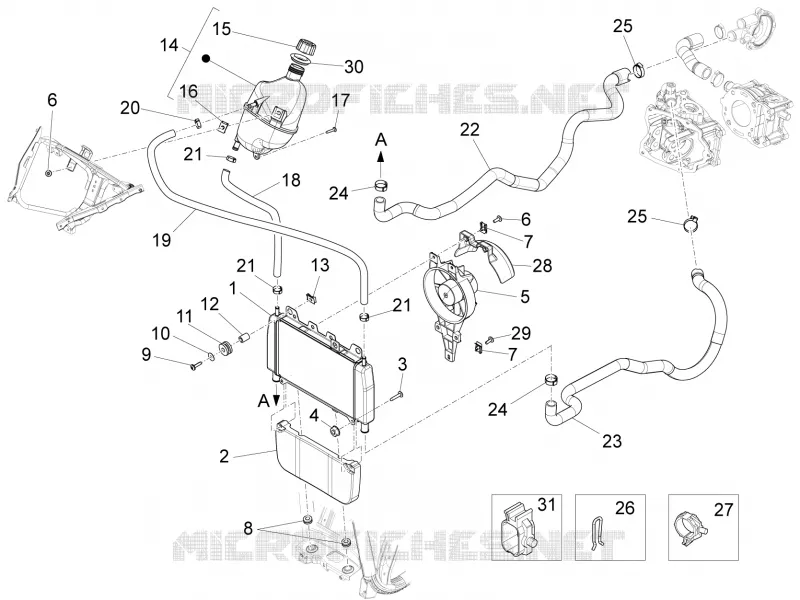

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
