Engine displacement
125
2
Model
X10
3
Year
2014
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog
Electrical system components
6

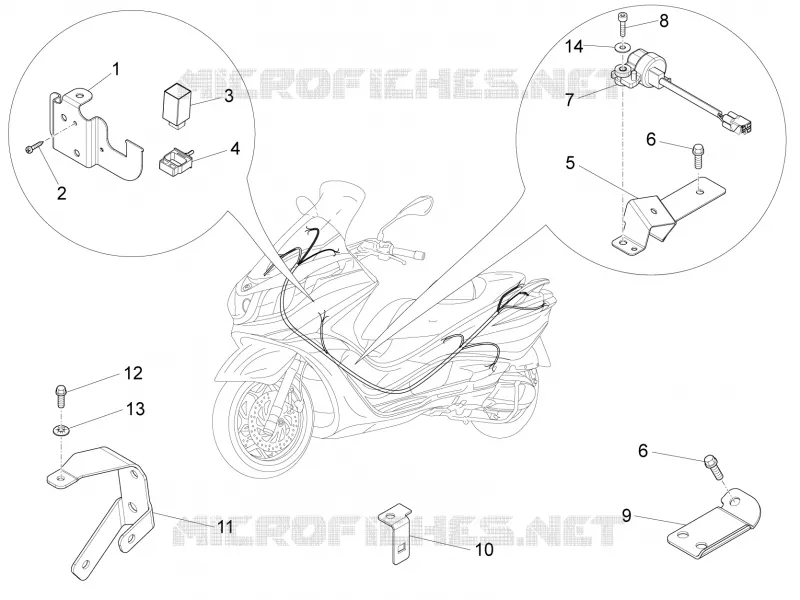

Parts Diagram
Parts Catalog
Remote control switches - Battery - Horn
by
Swinging arm
Electrical system components
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
1
Connector bracket
643256
£10,04 Unit Price incl. VAT
2
screw TBC 3,6x12
018603
Not Available
3
Turn indicator control device with hazard
640221
Not Available
4
Flexible support
291017
£13,44 Unit Price incl. VAT
5
Fall sensor bracket
643264
£13,22 Unit Price incl. VAT
6
Screw w/ flange
435634
Not Available
7
Fall sensor
680071
£83,00 Unit Price incl. VAT
8
screw M5x21
015856
Not Available
9
Wire fixing support
643257
£7,49 Unit Price incl. VAT
10
Bracket for connector
643267
£7,49 Unit Price incl. VAT
11
Cable harness bracket
643358
£15,23 Unit Price incl. VAT
12
Screw w/ flange
484123
£0,54 Unit Price incl. VAT
13
Washer
012528
Not Available
14
Flat washer 5,3x14x1
060201
Not Available
