Engine displacement
150
2
Model
FLY
3
Year
2016
4
Trim
Fly 4T 3V ie
5
Parts Catalog
Rear headlamps - Turn signal lamps
6
Parts Diagram
Parts Catalog
Frame/bodywork
by
Handlebars coverages
Rear headlamps - Turn signal lamps
1
2
3
4
5
5
6
6
7
8
9
10
11
12
12
13
14
15
16
16
17
17
18
18
19
19
20
20
1
Taillight
1D000146
£56,65 Unit Price incl. VAT
2
Lamp 12V-21/5W
129953
£3,48 Unit Price incl. VAT
3
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
4
Spring plate
CM017410
£0,71 Unit Price incl. VAT
5
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
6
Spring plate M6
254485
£1,64 Unit Price incl. VAT
7
Rear licence plate light
1D0001890000C
£26,32 Unit Price incl. VAT
8
Lamp 12V-5W
292022
Not Available
9
screw 3,5x16
015859
Not Available
10
Spring plate
CM017403
£0,90 Unit Price incl. VAT
11
Right rear or left front turn indicators
642023
£34,00 Unit Price incl. VAT
12
Lamp 12V-10W
584332
£3,77 Unit Price incl. VAT
13
RH turn indicator support
1D000035
£4,91 Unit Price incl. VAT
14
Left rear or right front turn indicators
642024
£34,00 Unit Price incl. VAT
15
LH turn indicator support
1D000036
£4,91 Unit Price incl. VAT
16
Metric screw TBC
CM179302
£1,27 Unit Price incl. VAT
17
Spring washer 13,75x8,15x4,5
016408
Not Available
18
Washer
078307
Not Available
19
Nut M6
020106
Not Available
20
Spring
CM013201
£0,76 Unit Price incl. VAT

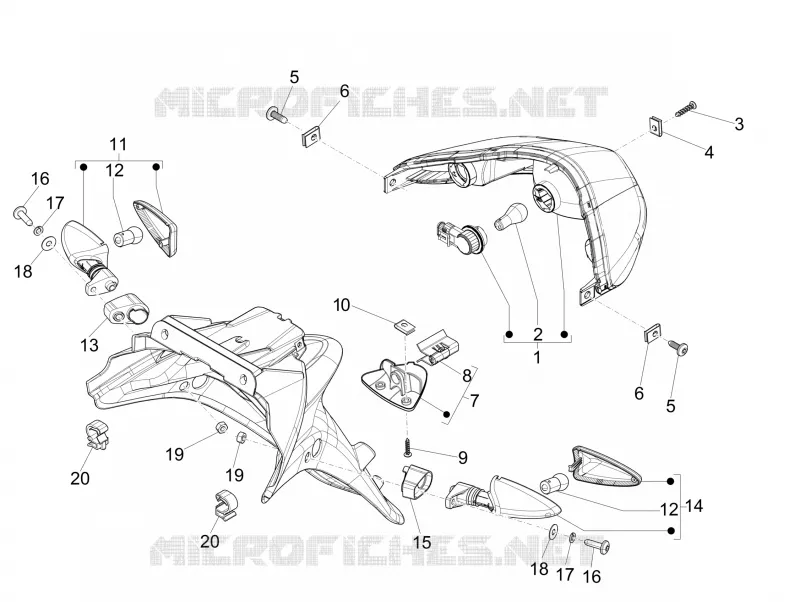

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
