Engine displacement
150
2
Model
FLY
3
Year
2016
4
Trim
Fly 4T 3V ie
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6

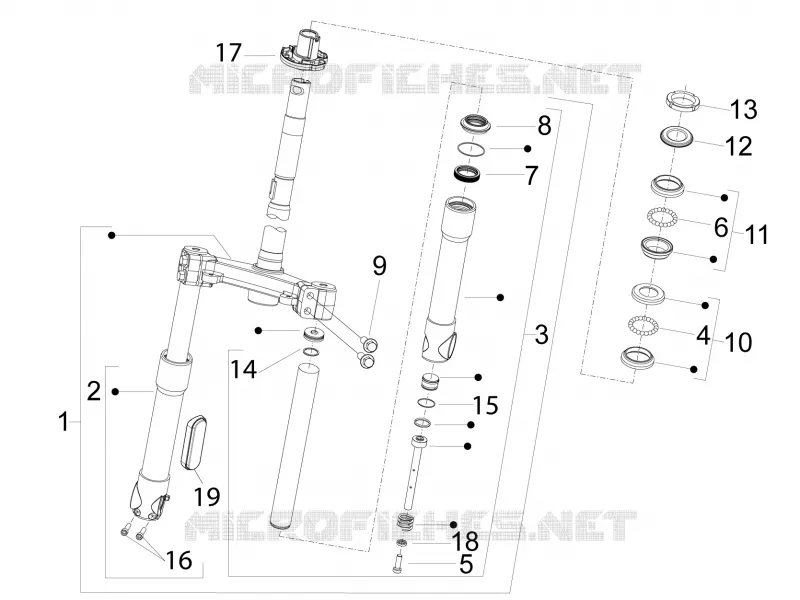

Parts Diagram
Parts Catalog
Rear cover - Splash guard
by
Silencer
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Front fork
667409
£231,24 Unit Price incl. VAT
2
R.H. sleeve assy
667623
£149,84 Unit Price incl. VAT
3
L.H. sleeve assy
667622
£149,84 Unit Price incl. VAT
4
Missing description
000000
Not Available
5
screw Wuxi top
650433
£4,99 Unit Price incl. VAT
6
Missing description
000000
Not Available
7
Oil seal
668492
£3,59 Unit Price incl. VAT
8
Dust cover
668497
£7,10 Unit Price incl. VAT
9
screw
668495
£3,42 Unit Price incl. VAT
10
Lower steering bearing
650075
Not Available
11
Upper thrust ring
65069345
£19,51 Unit Price incl. VAT
12
Steering security plate
582787
£1,91 Unit Price incl. VAT
13
Steering tube ring nut
0111094
Not Available
14
O-ring
668498
£0,62 Unit Price incl. VAT
15
Ring
668496
£1,16 Unit Price incl. VAT
16
screw
668494
£1,16 Unit Price incl. VAT
17
Collar
673830
£7,28 Unit Price incl. VAT
18
Washer
650458
£4,99 Unit Price incl. VAT
19
Lateral reflector
664045
£13,92 Unit Price incl. VAT
