Engine displacement
150
2
Model
FLY
3
Year
2016
4
Trim
Fly 4T 3V ie
5
Parts Catalog
Reduction unit
6
Parts Diagram
Parts Catalog
Remote control switches - Battery - Horn
by
Rear wheel
Reduction unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Reducer cover with i.p.
B0162665
£336,89 Unit Price incl. VAT
2
Radial bearing 25x52x15
83056R
Not Available
3
Radial bearing 15x42x13
83026R
£5,51 Unit Price incl. VAT
4
Gasket ring 35x47x7
B015623
£7,26 Unit Price incl. VAT
5
Snap ring 52x56,2x2
B016556
£7,70 Unit Price incl. VAT
6
Screw w/ flange M8x35
B016772
£1,24 Unit Price incl. VAT
7
Reduction unit cover gasket
B016456
£11,71 Unit Price incl. VAT
8
Hose clamp
CM002908
£1,27 Unit Price incl. VAT
9
Reduction unit breather pipe assembly
B018670
£12,76 Unit Price incl. VAT
10
Driven pulley shaft Z=15
B0169605
Not Available
11
Transmission shaft
8319145
£304,85 Unit Price incl. VAT
11
Transmission shaft
B017779
£290,57 Unit Price incl. VAT
12
Rear wheel axle
4859095
Not Available
12
Rear wheel axle
B017775
£221,77 Unit Price incl. VAT
13
Washer 8.2x12x1
485703
£0,96 Unit Price incl. VAT
14
Hex socket screw M8x12
269755
£1,36 Unit Price incl. VAT
15
Screw w/ flange M8x50
1A000319
Not Available
16
Dust gaiter cover
1A000004
£4,38 Unit Price incl. VAT

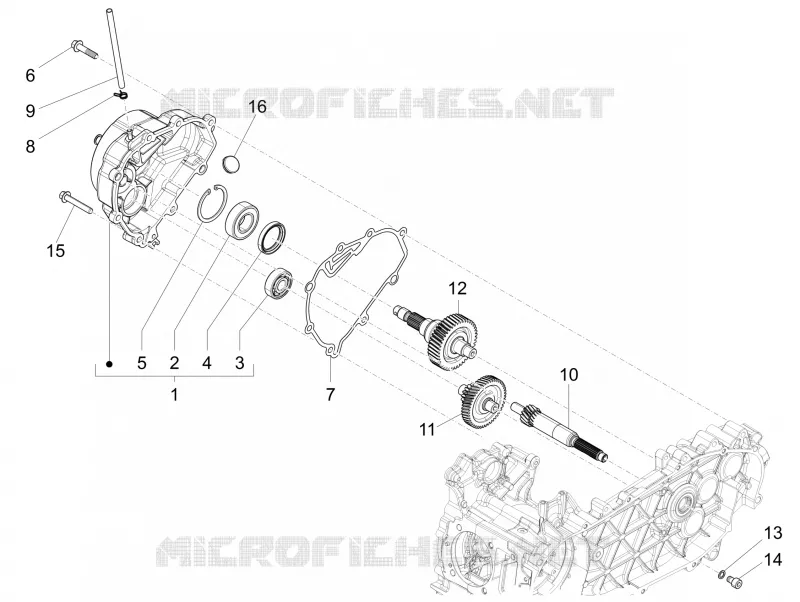

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
